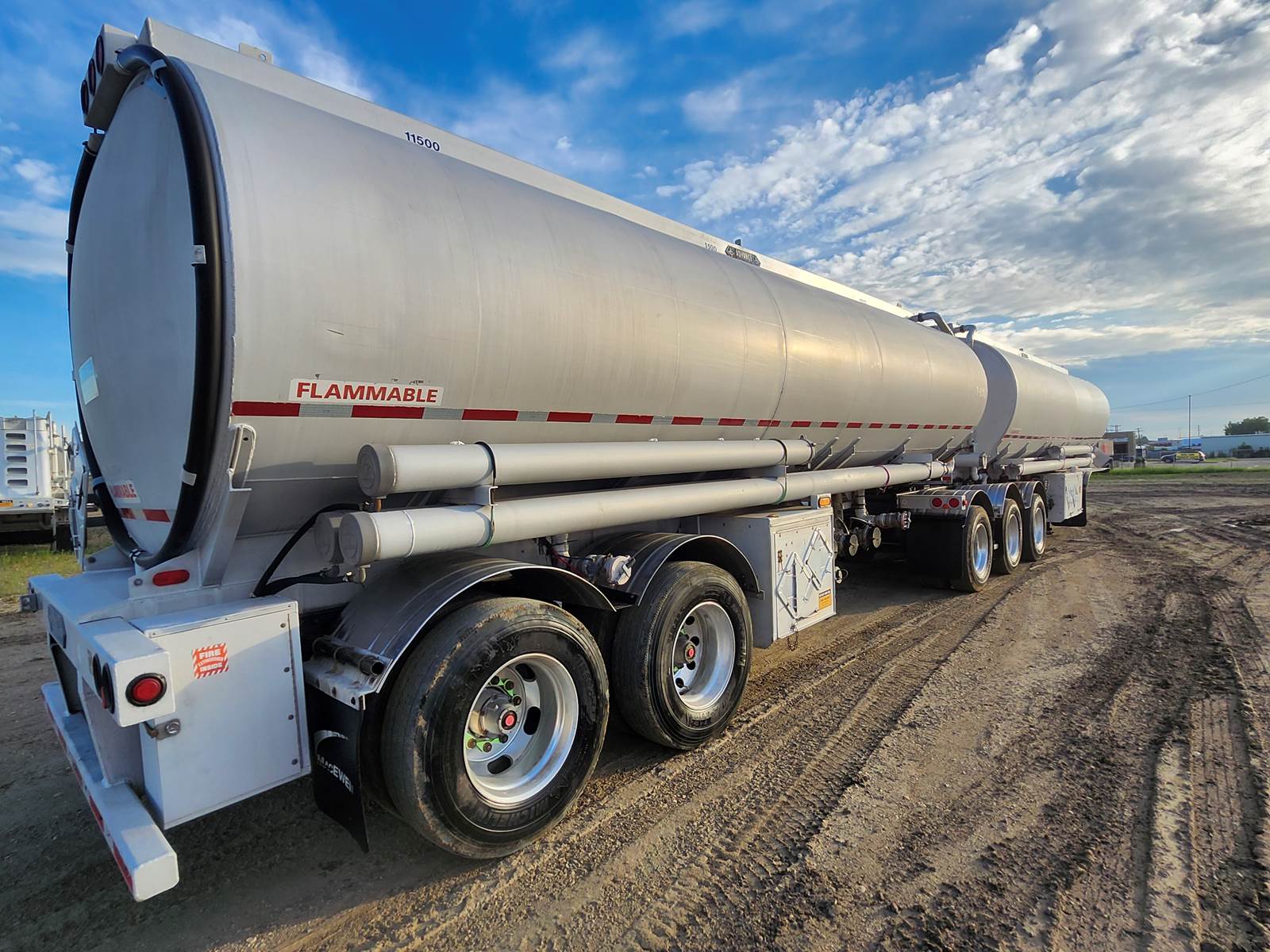

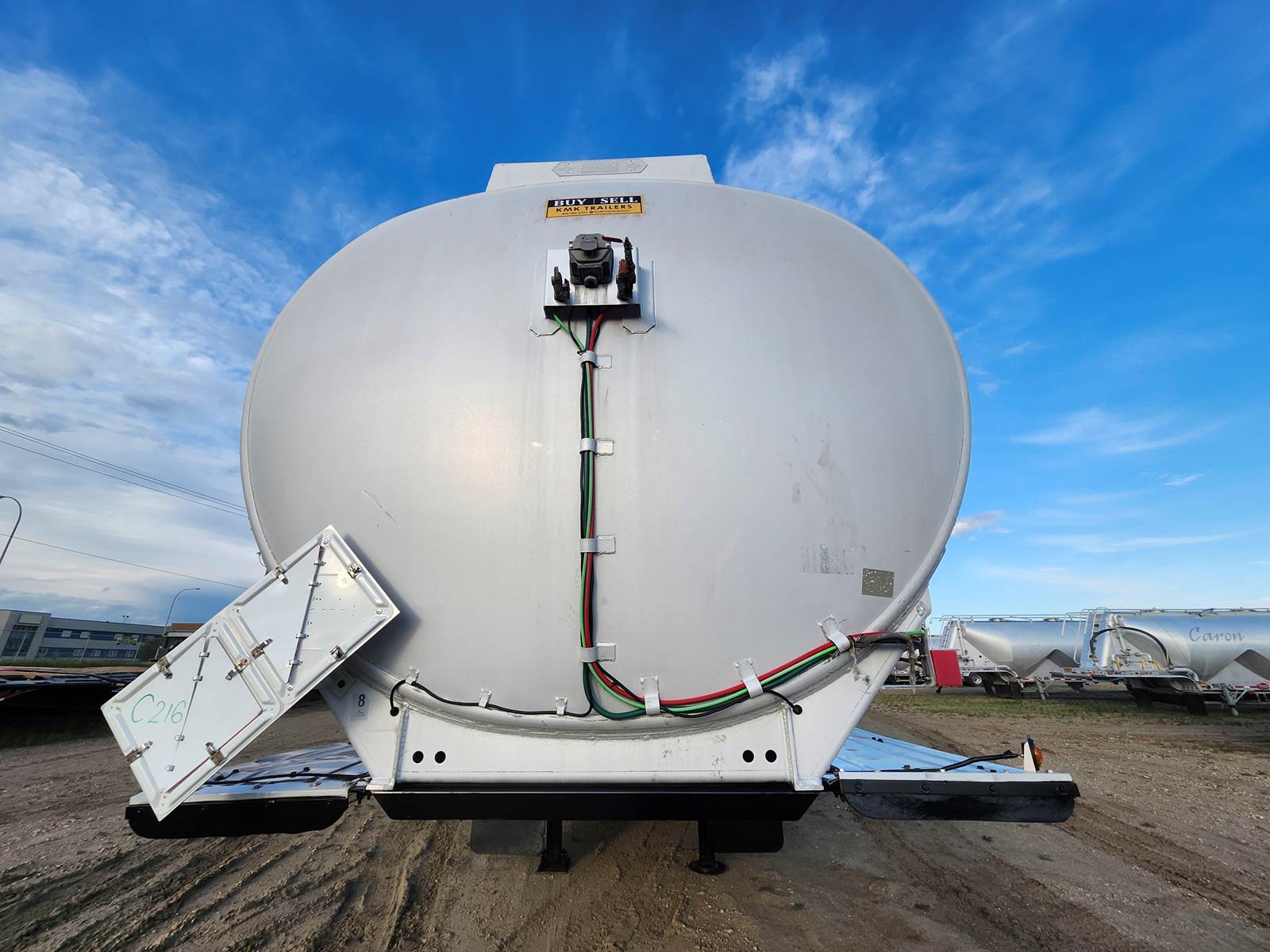

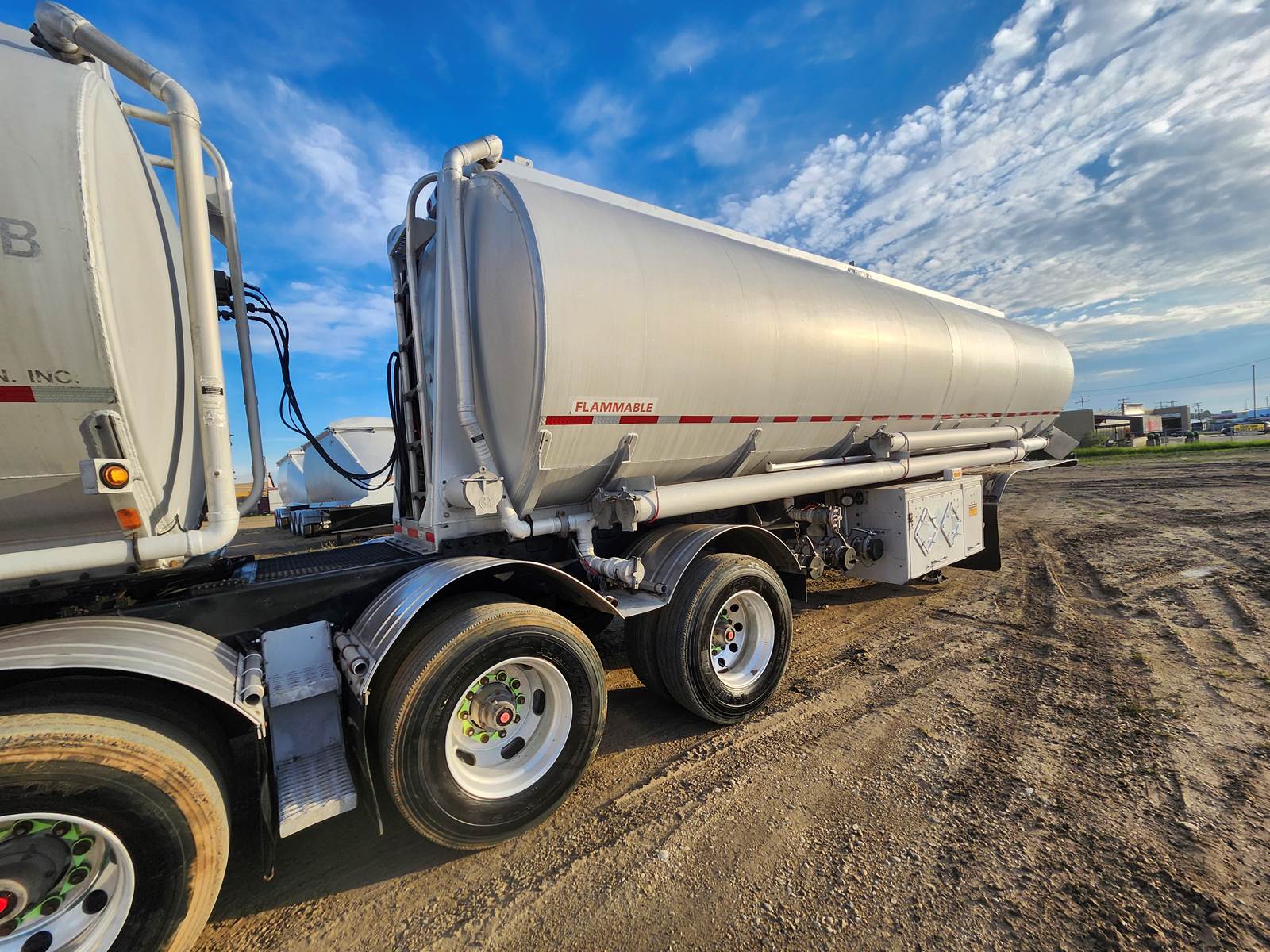

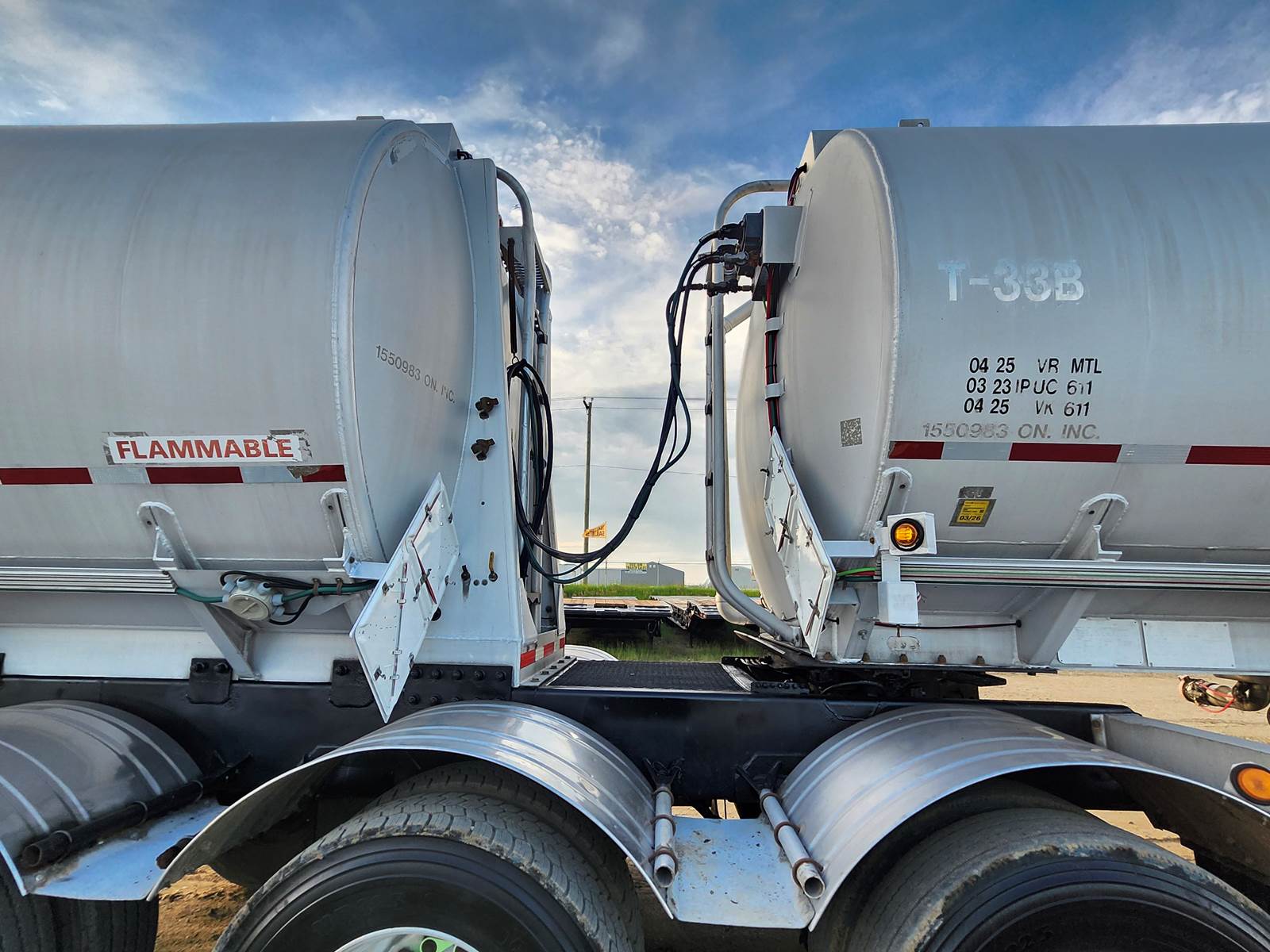

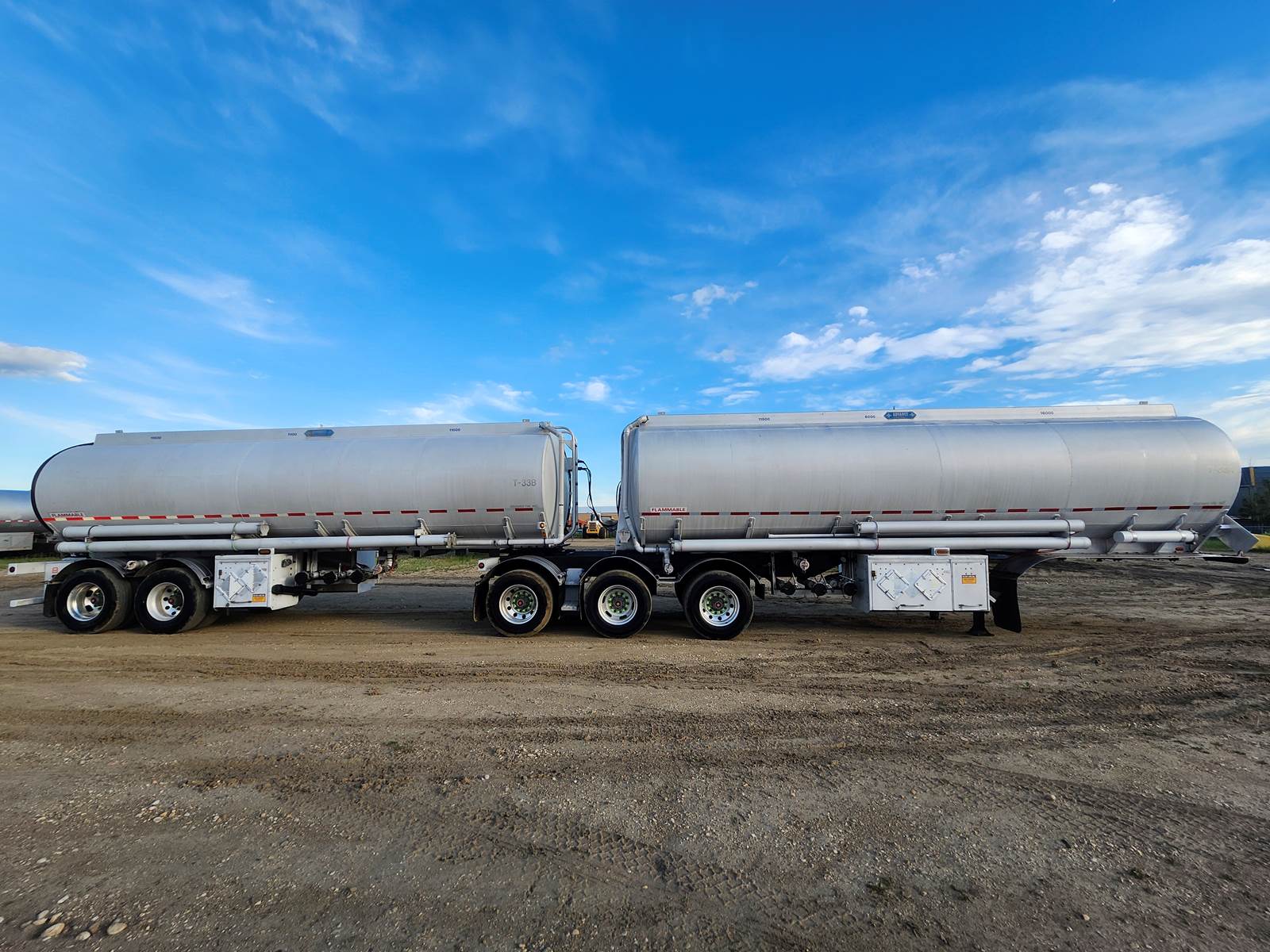

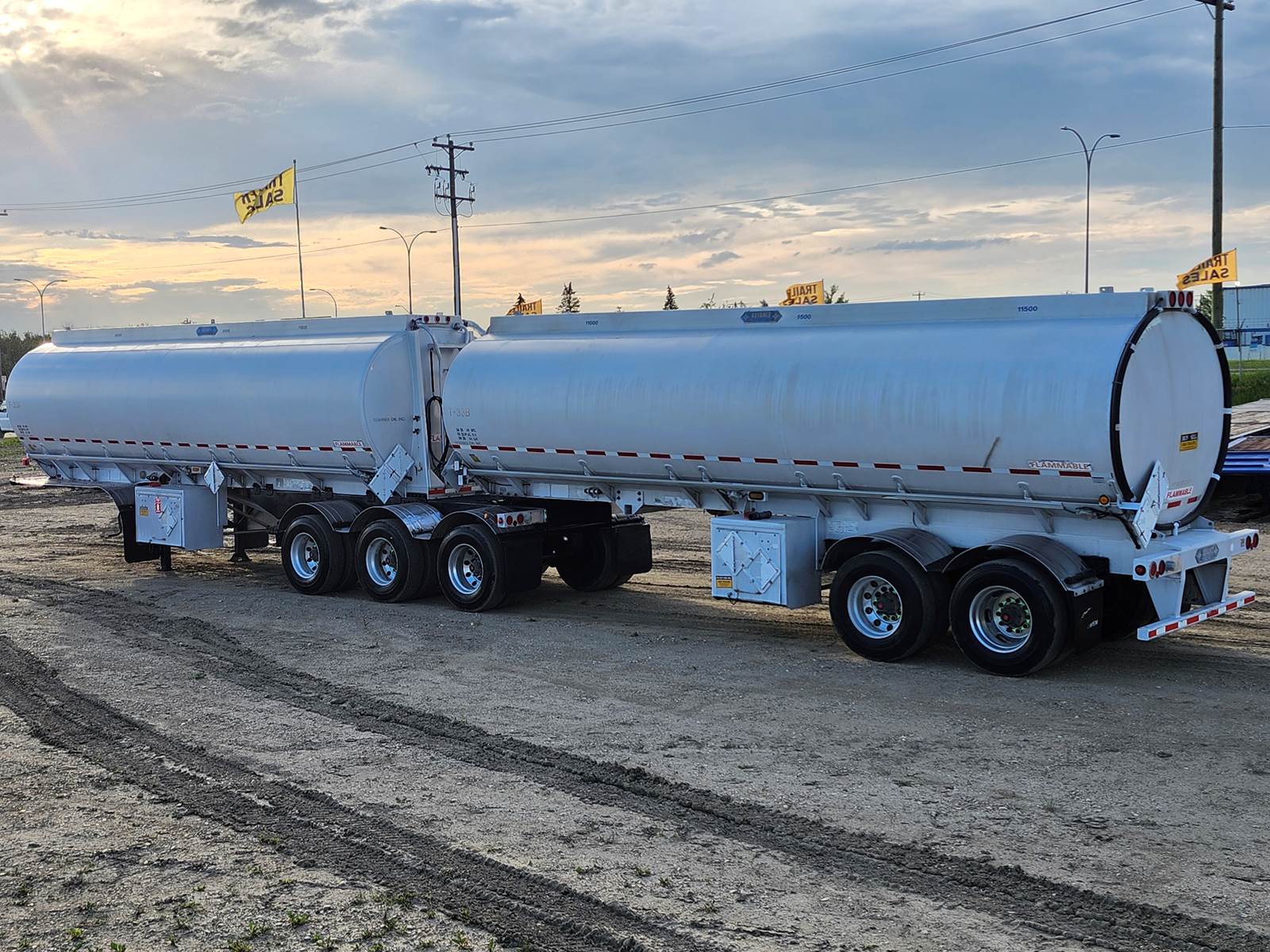

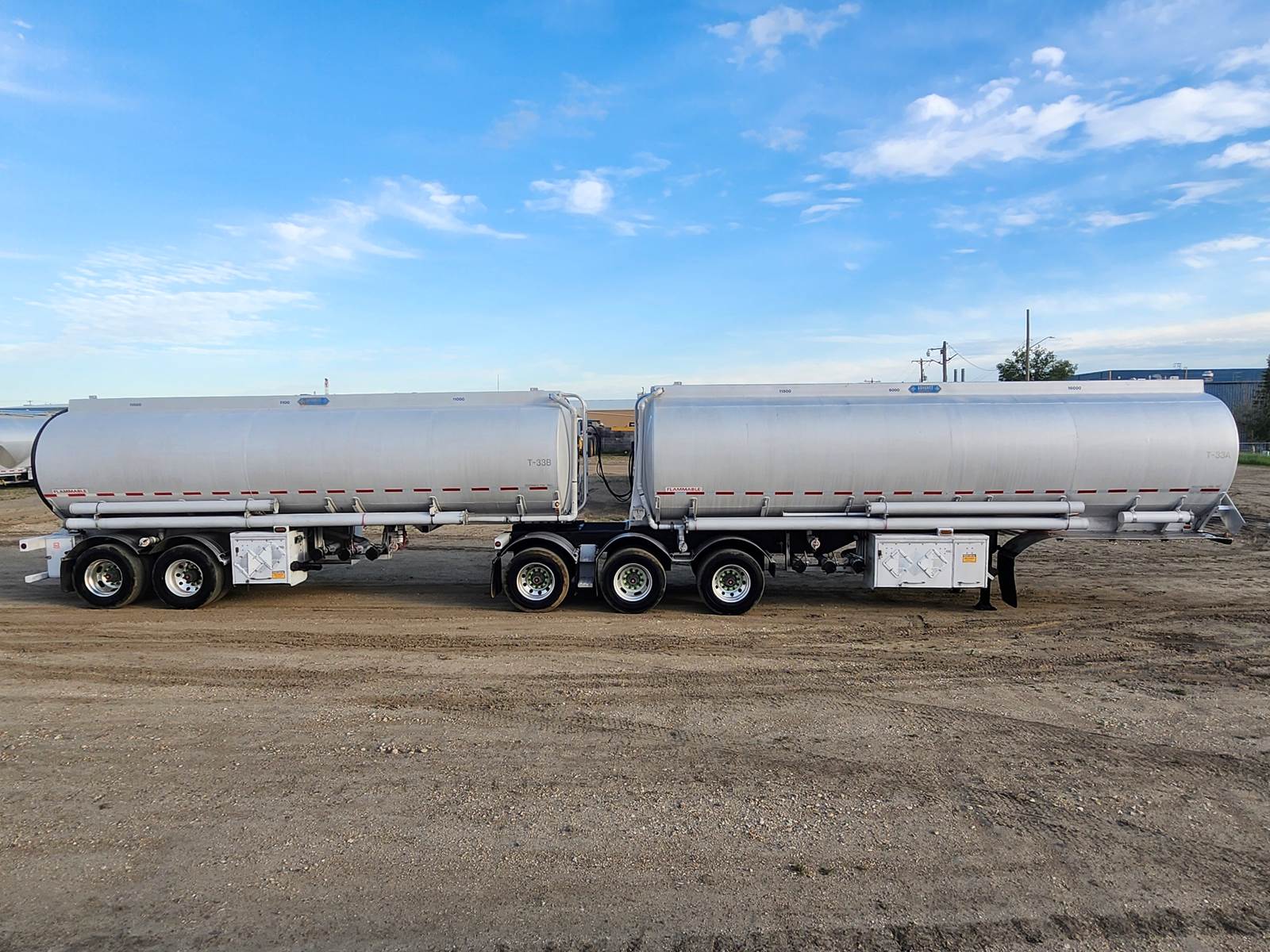

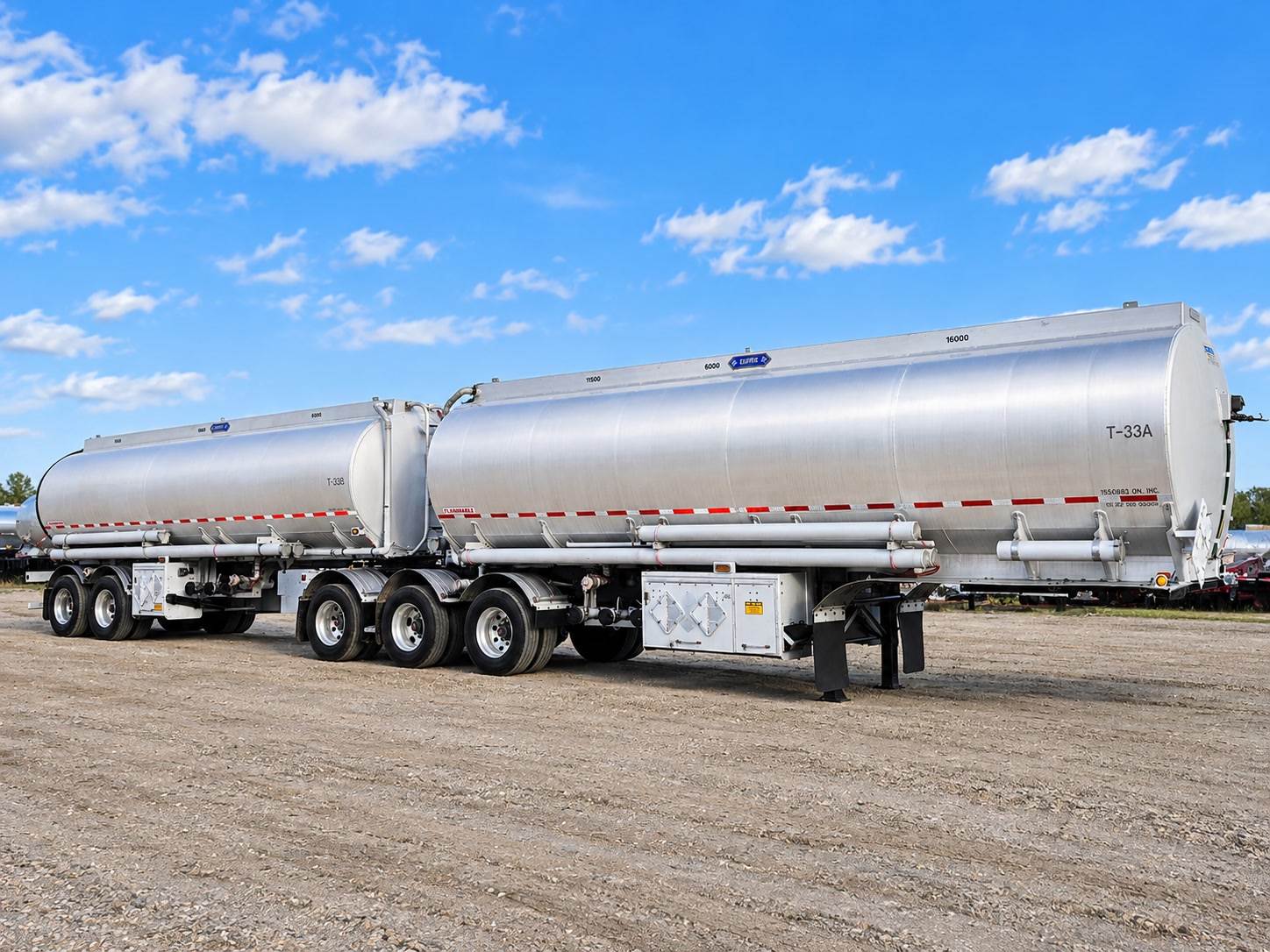

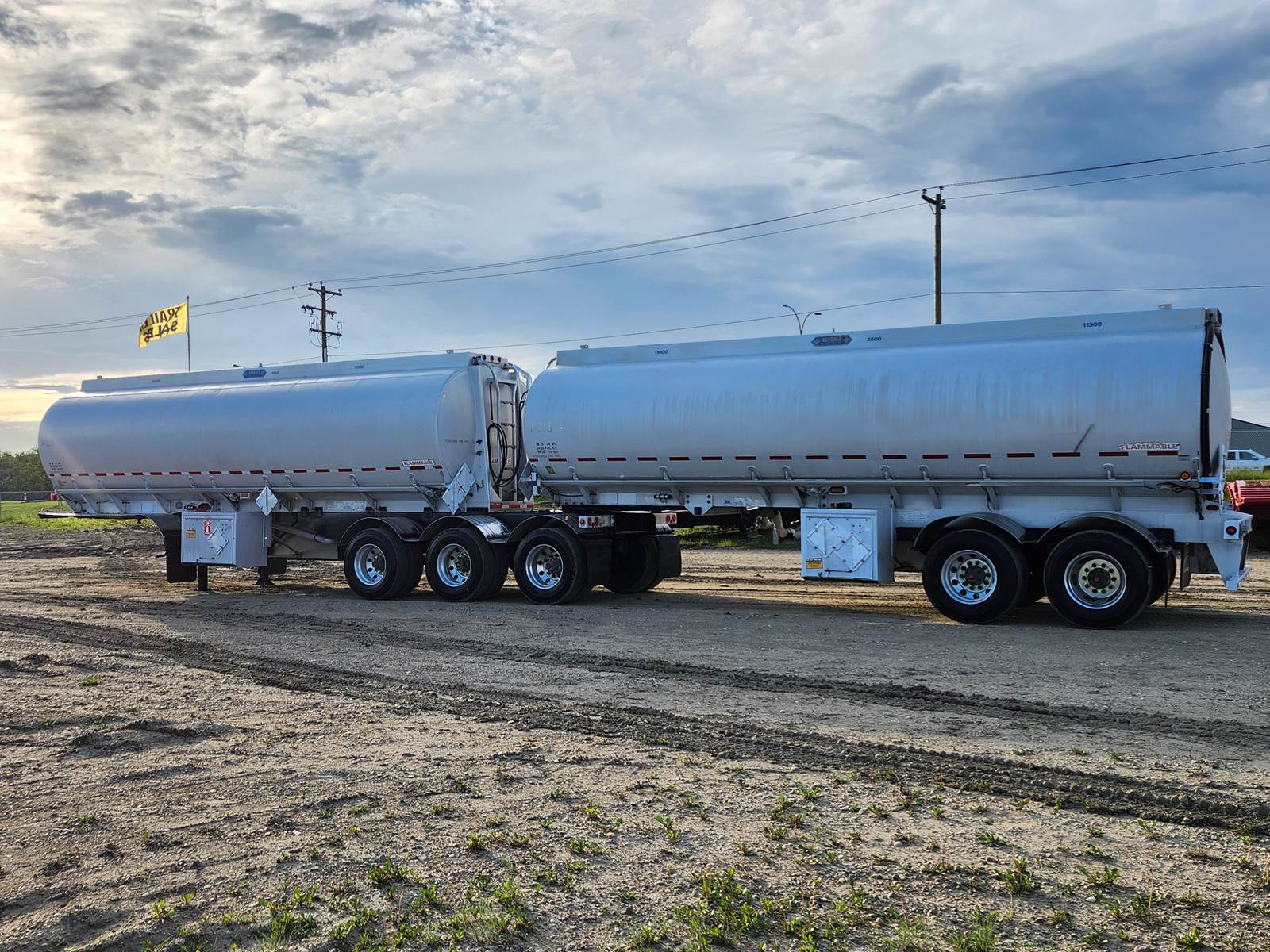

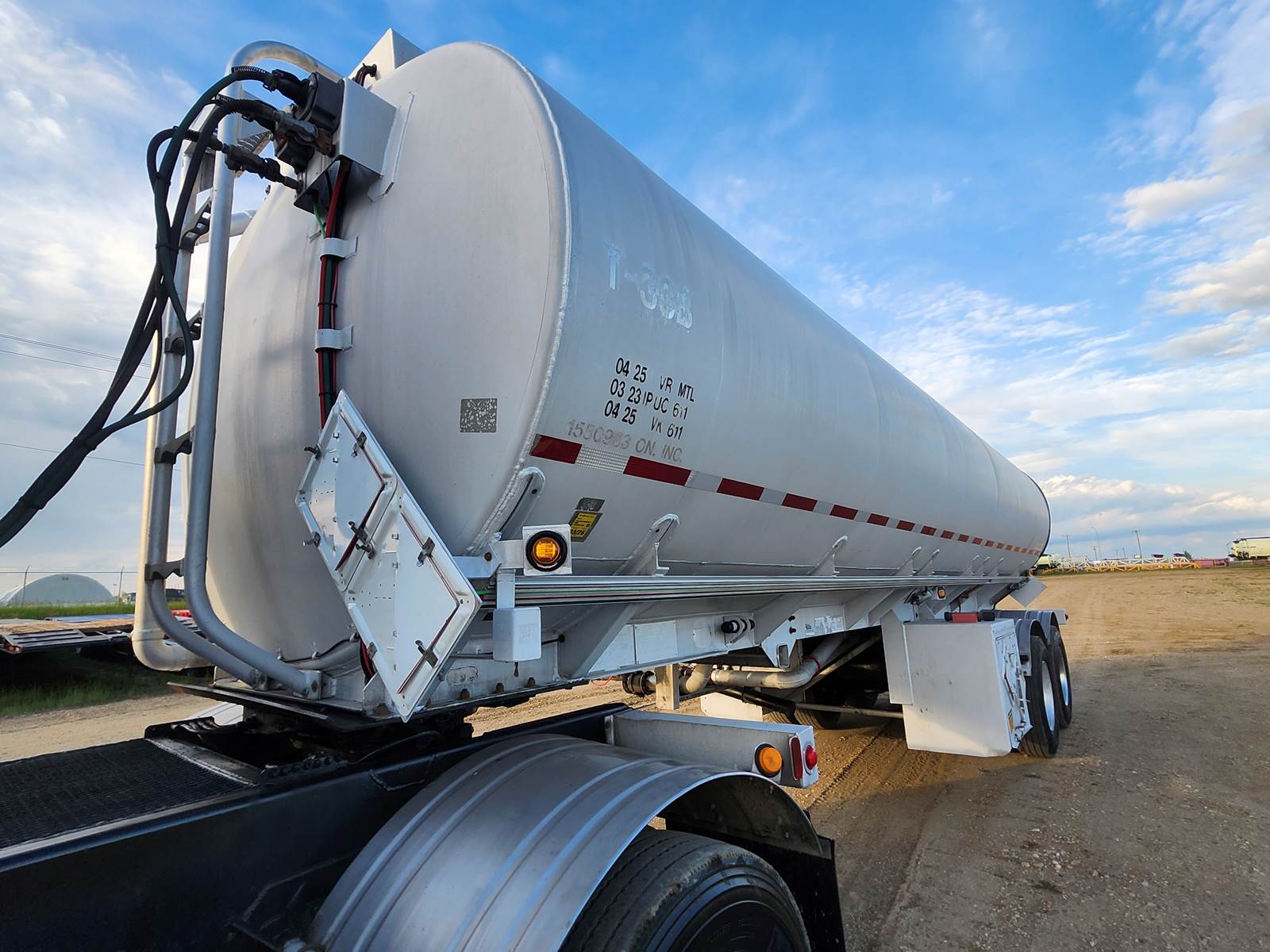

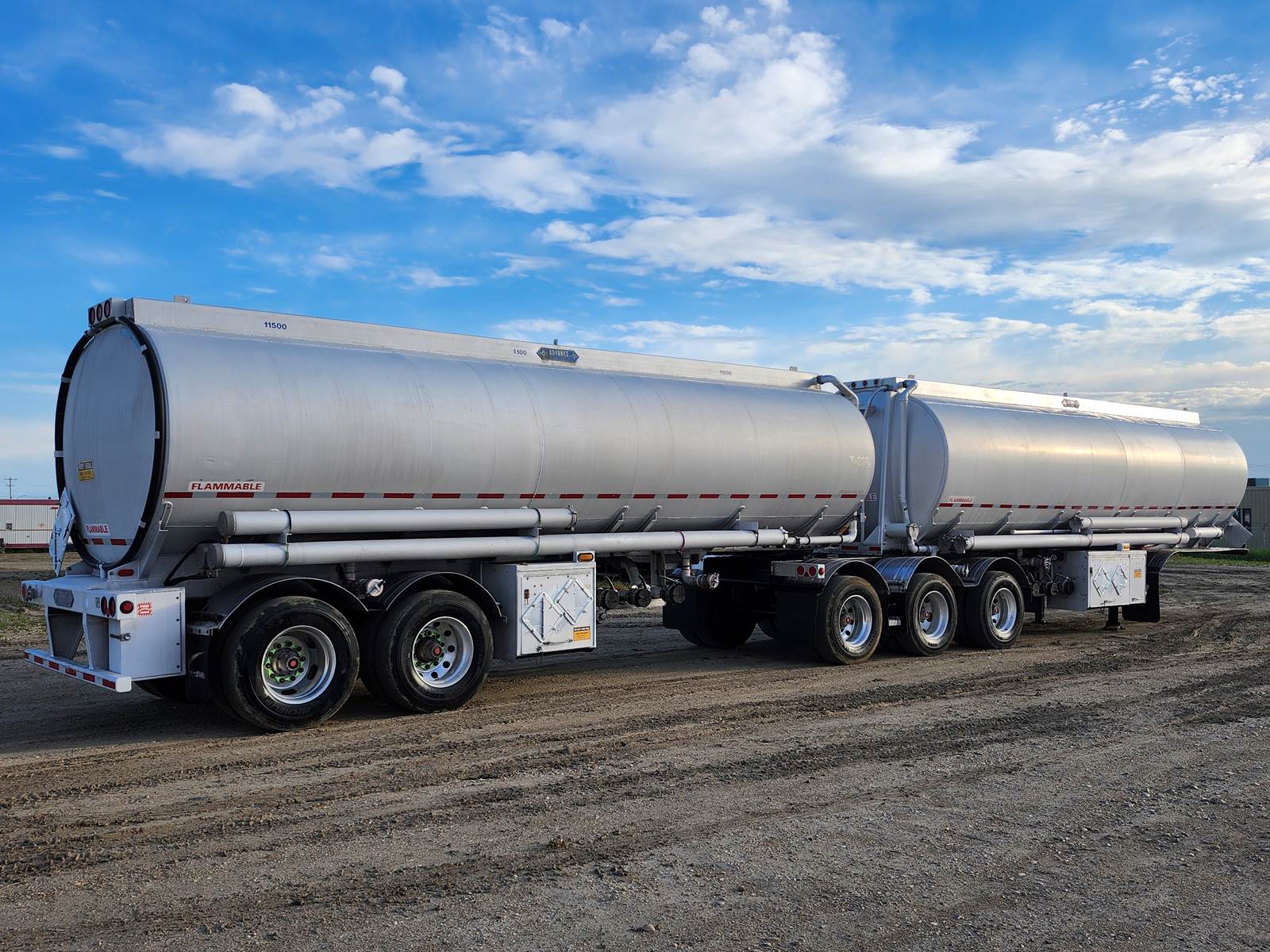

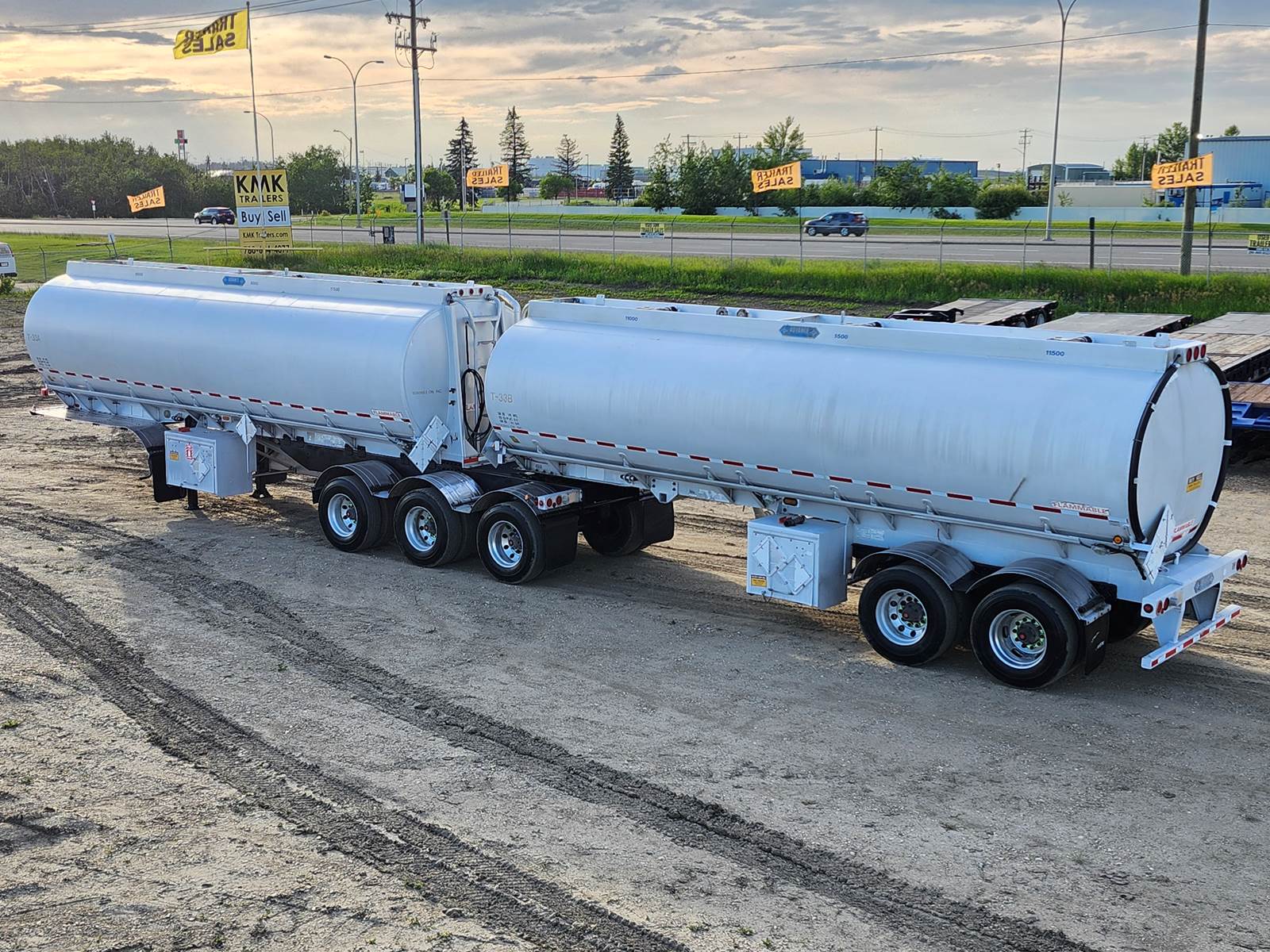

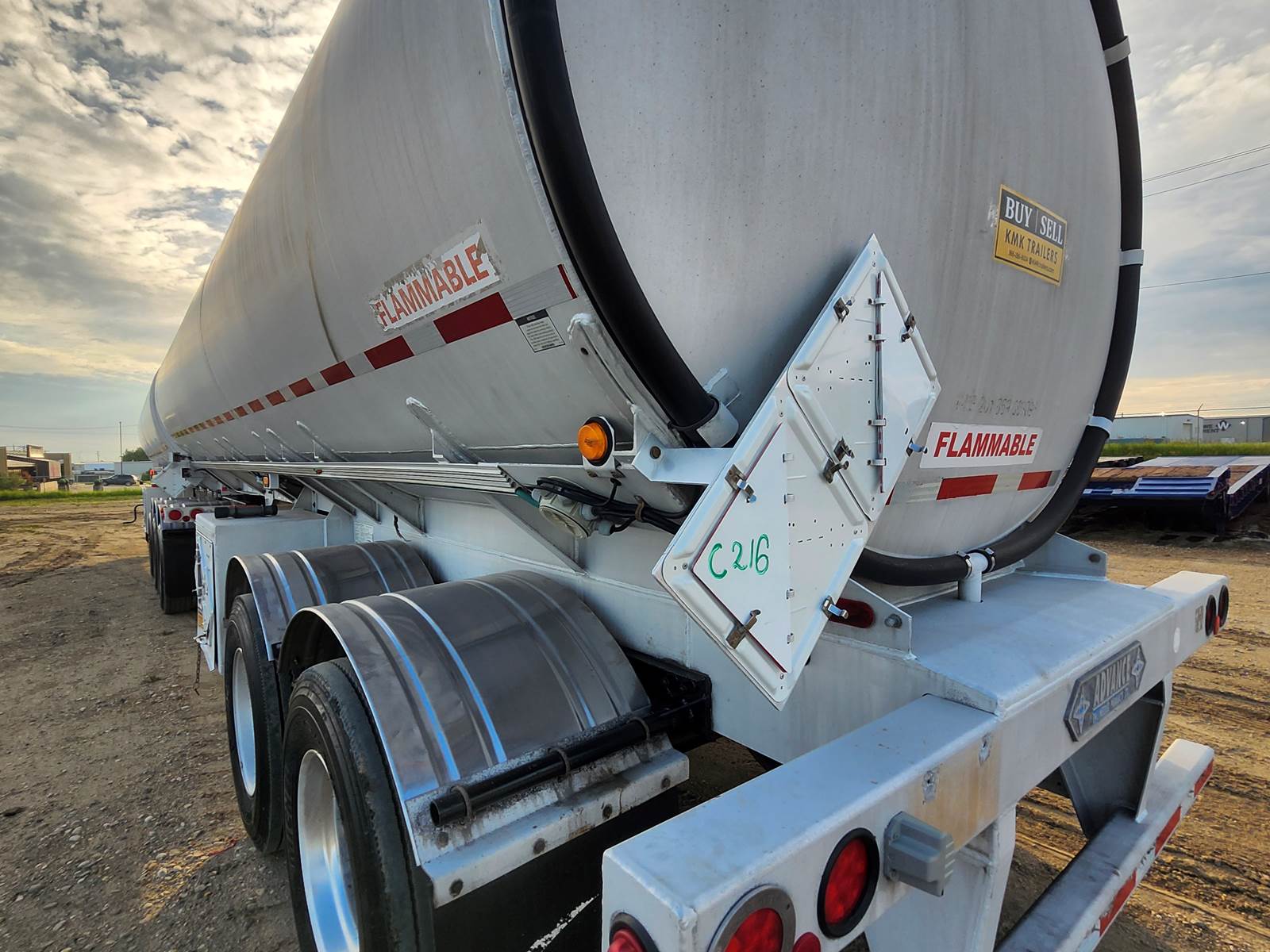

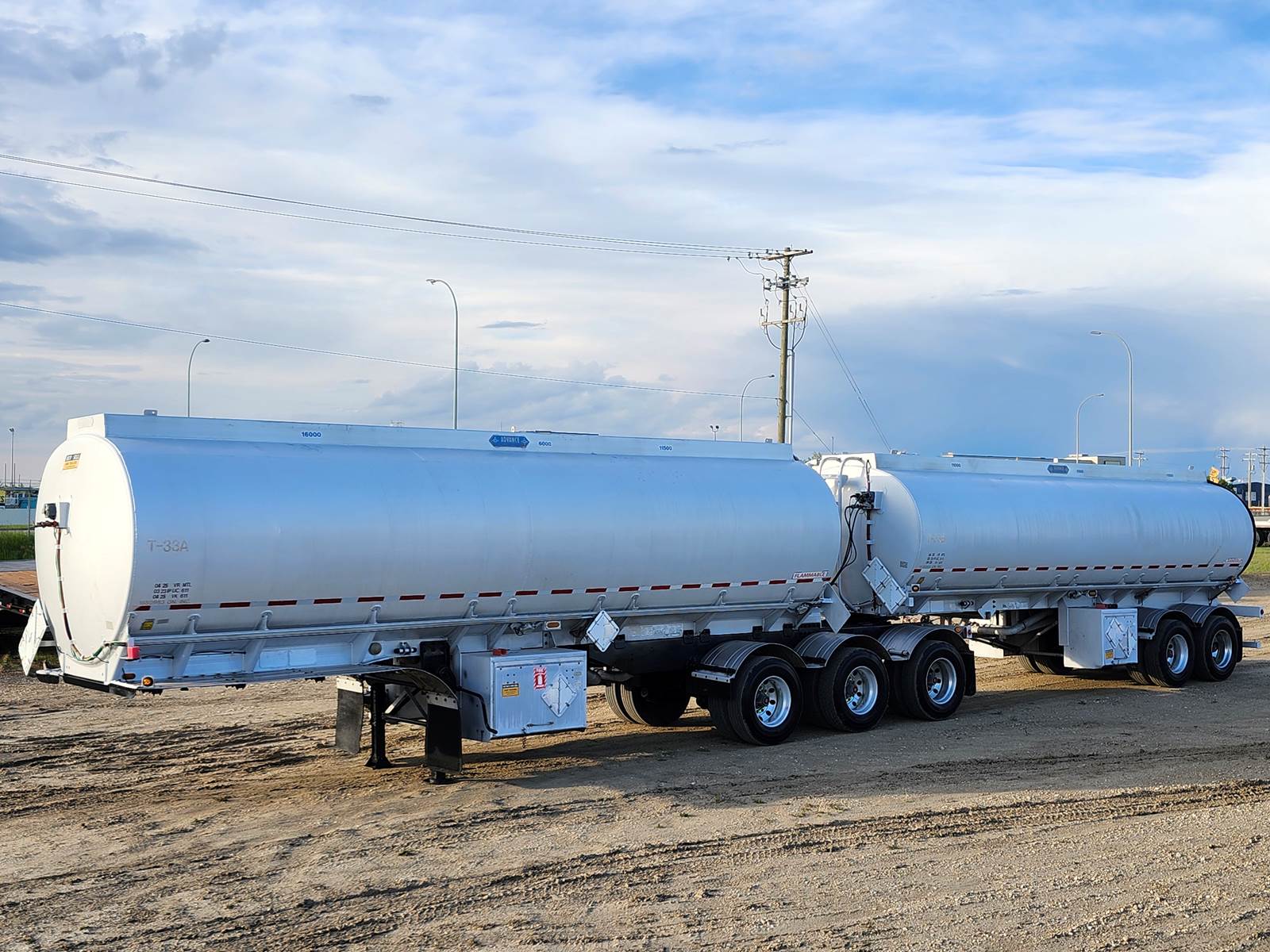

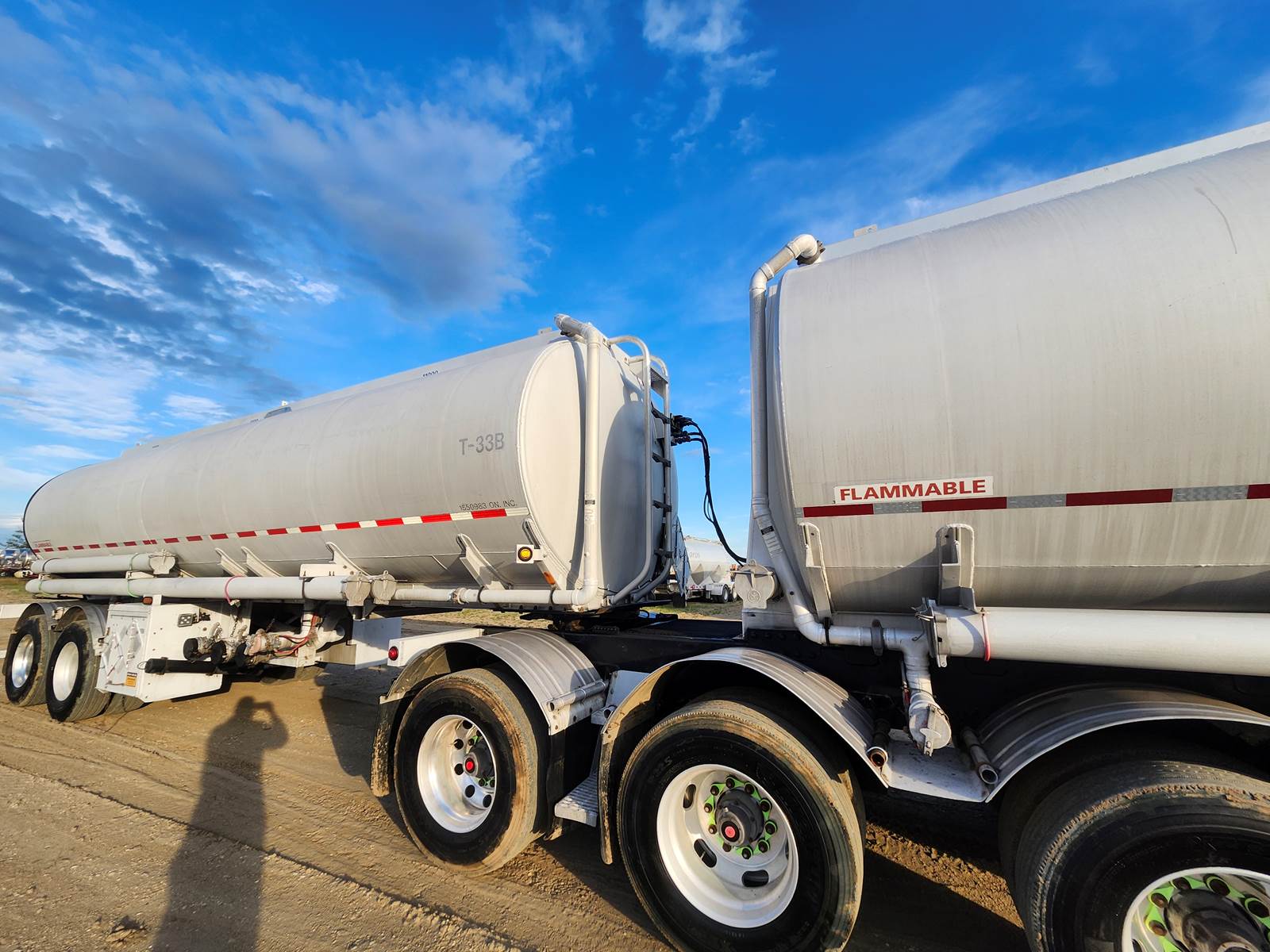

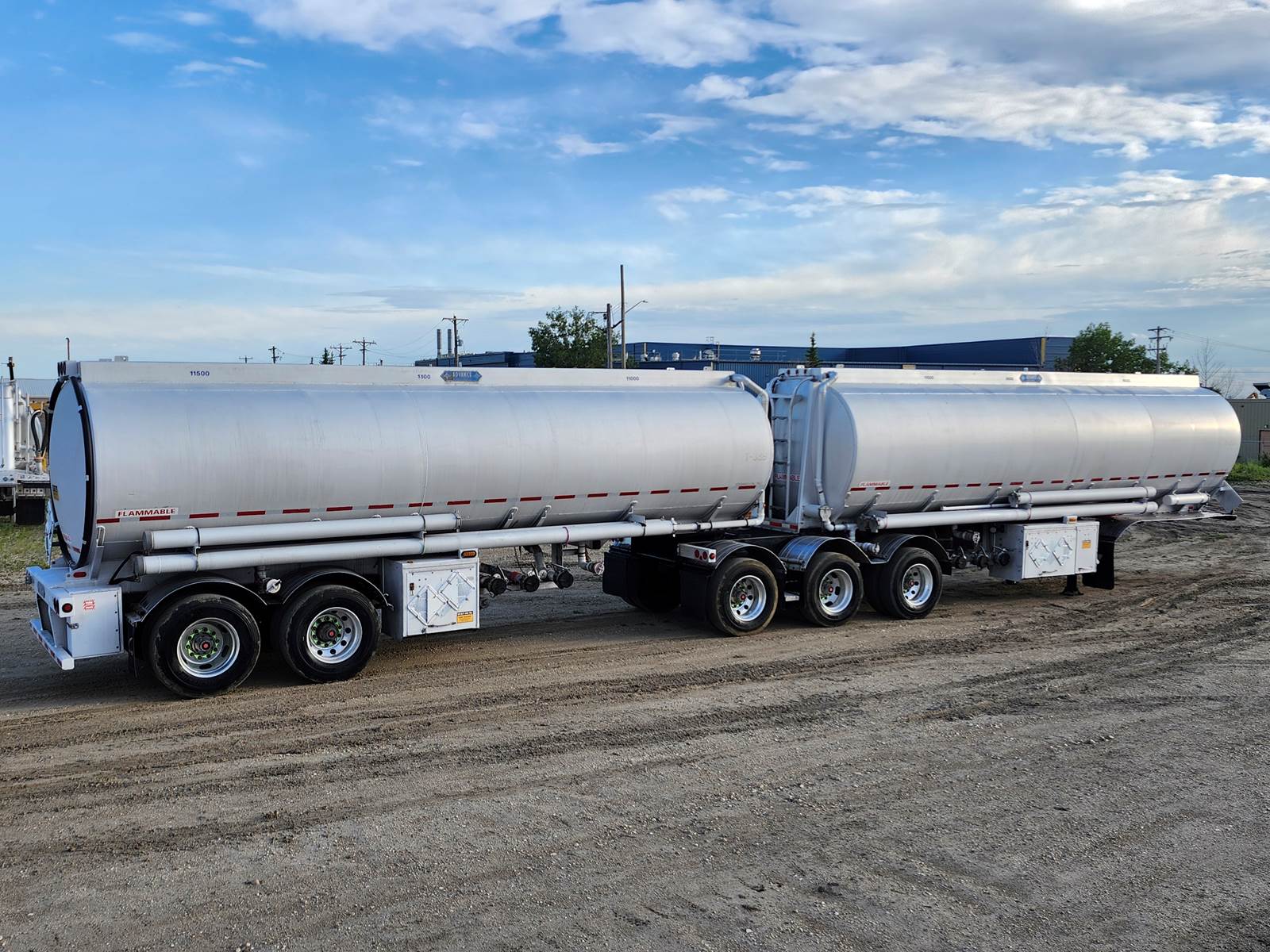

2008 Advance Super B 61,500 Liter 16,250 Gallon Fuel Tanker Trailer TC / DOT 406 Tank code

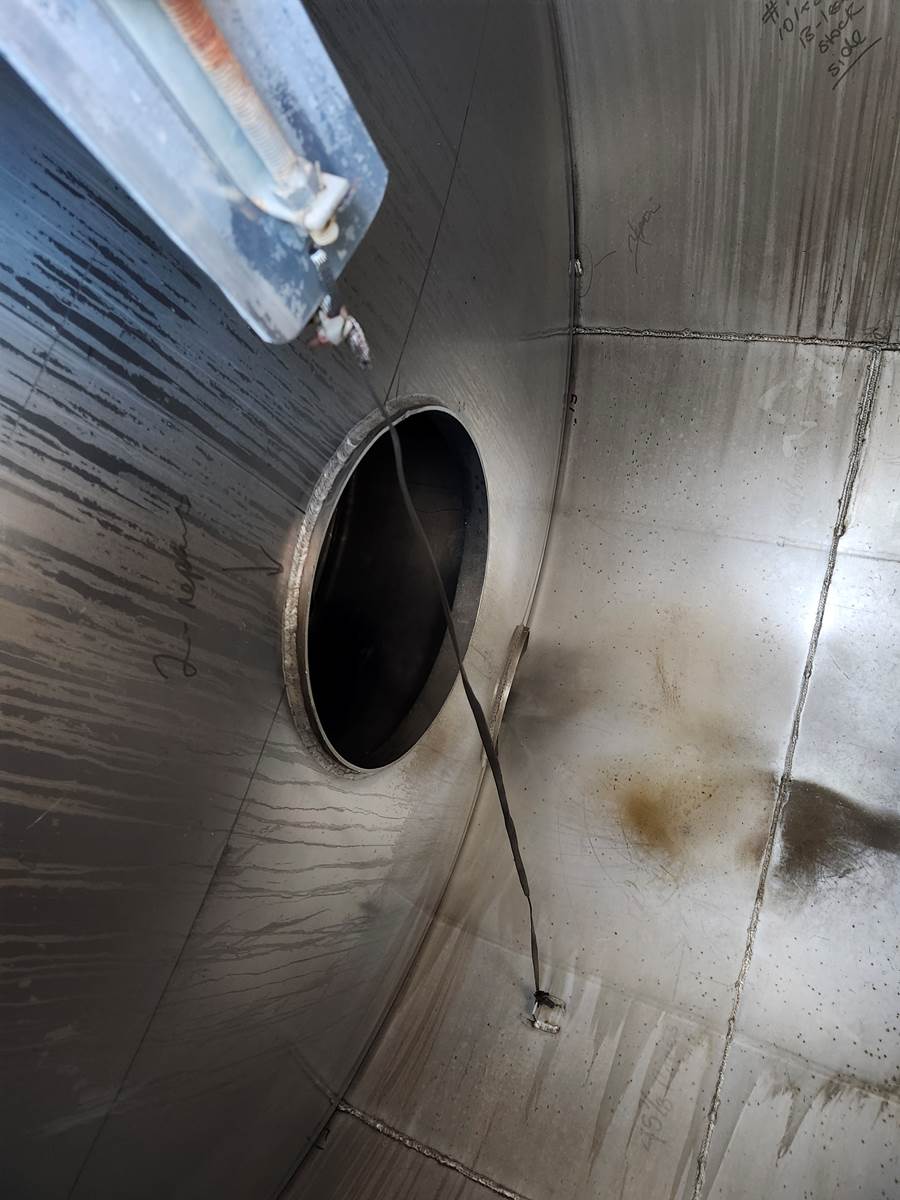

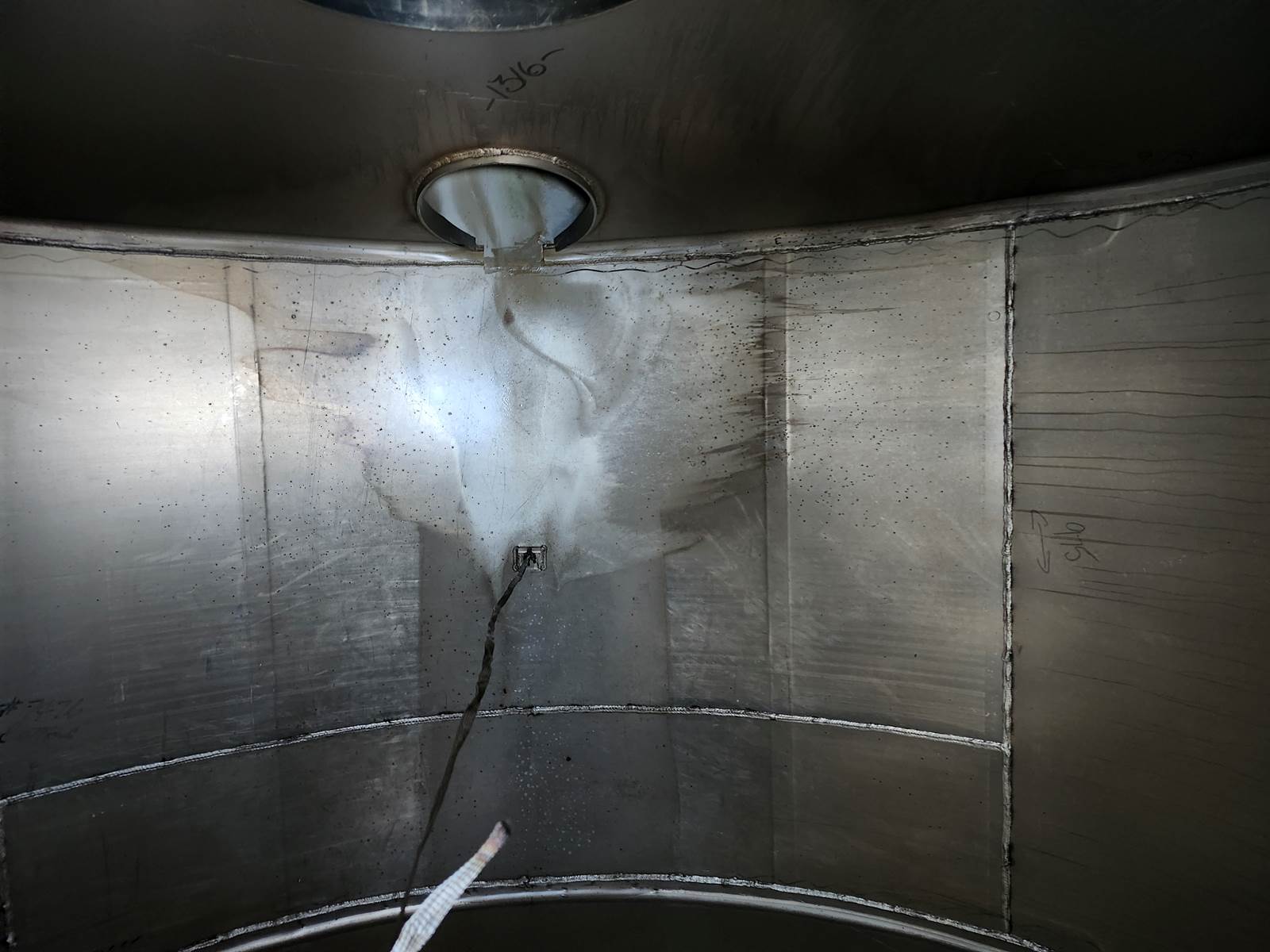

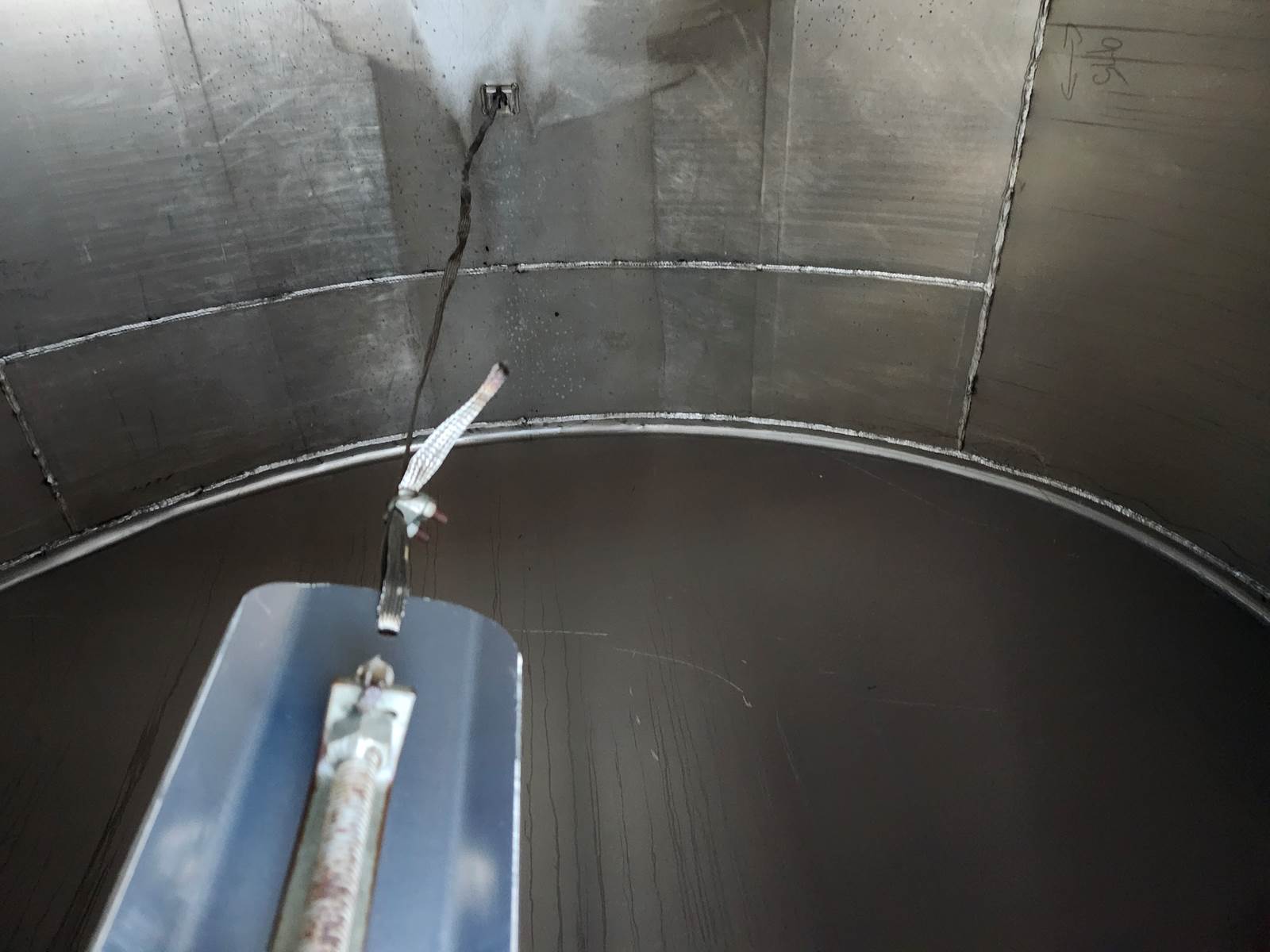

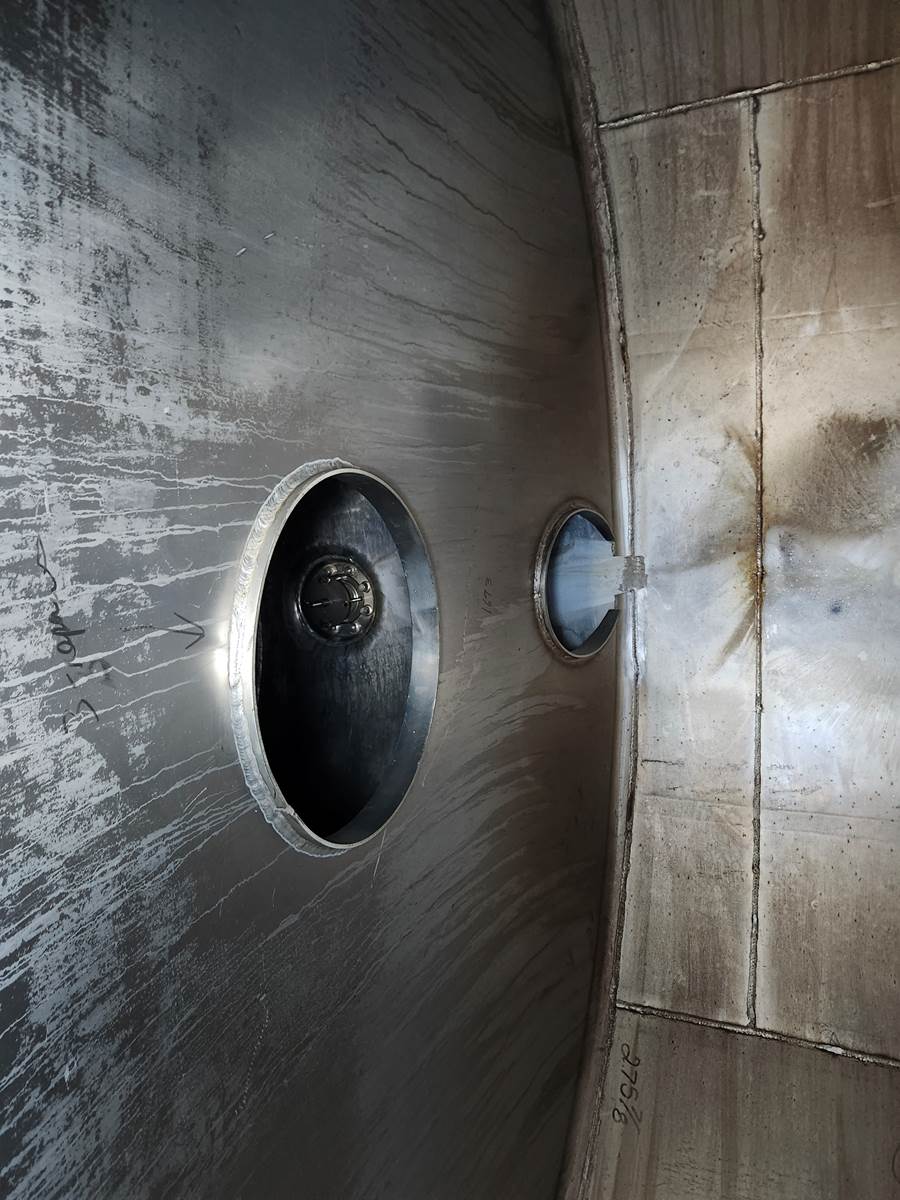

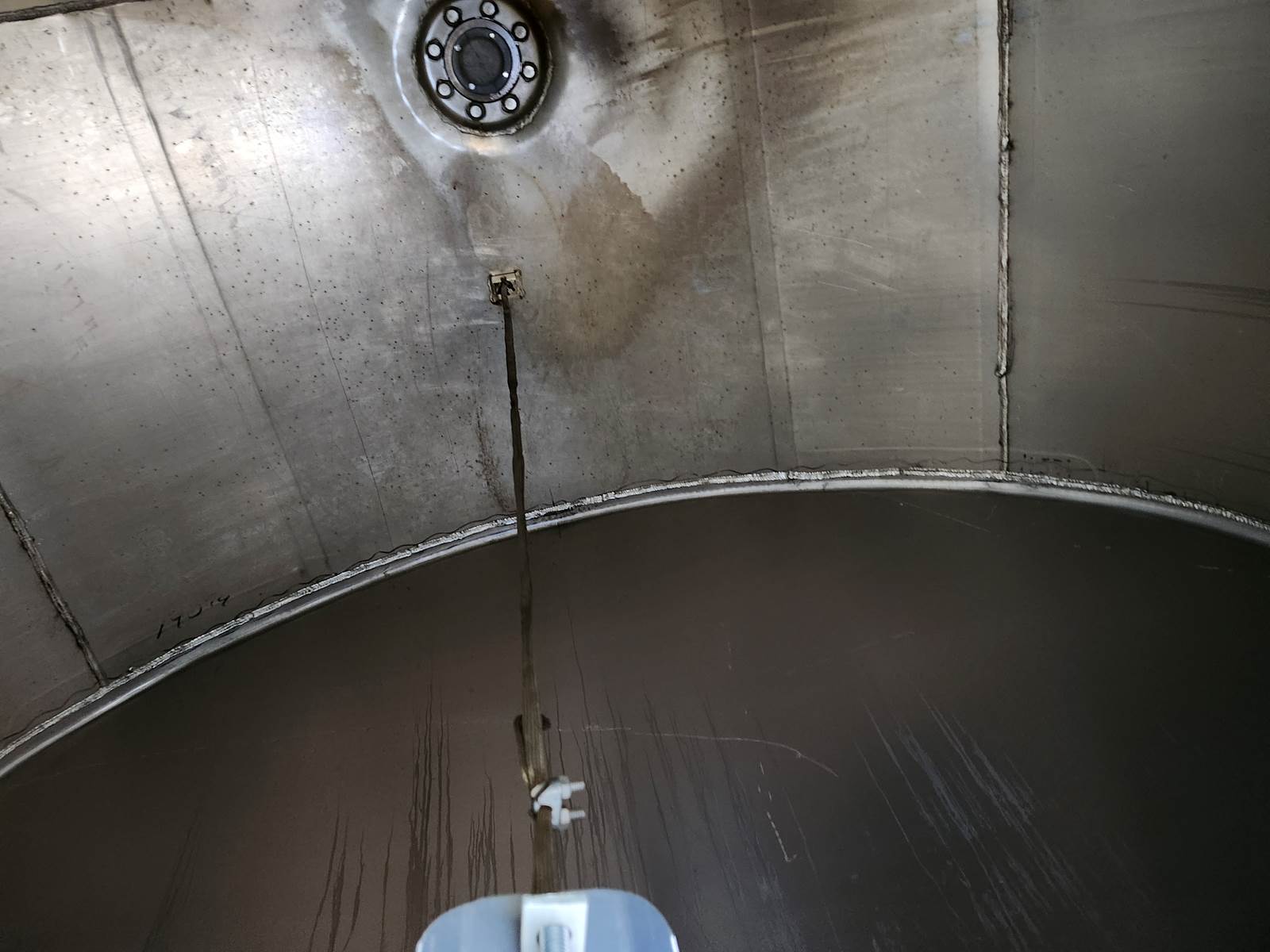

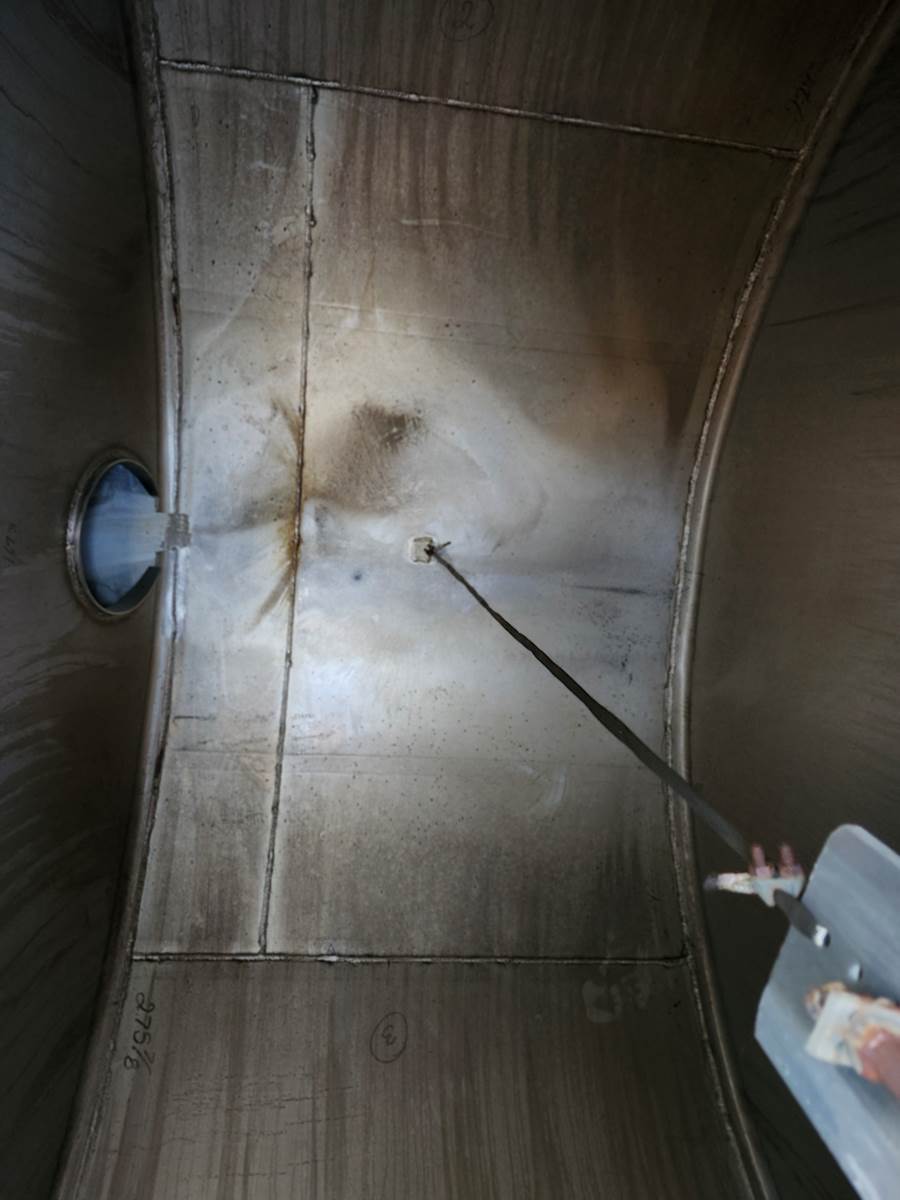

FRESH TANK INSPECTIONS & CVIP
DOT 406 aluminum tanks
Three separate compartments per trailer

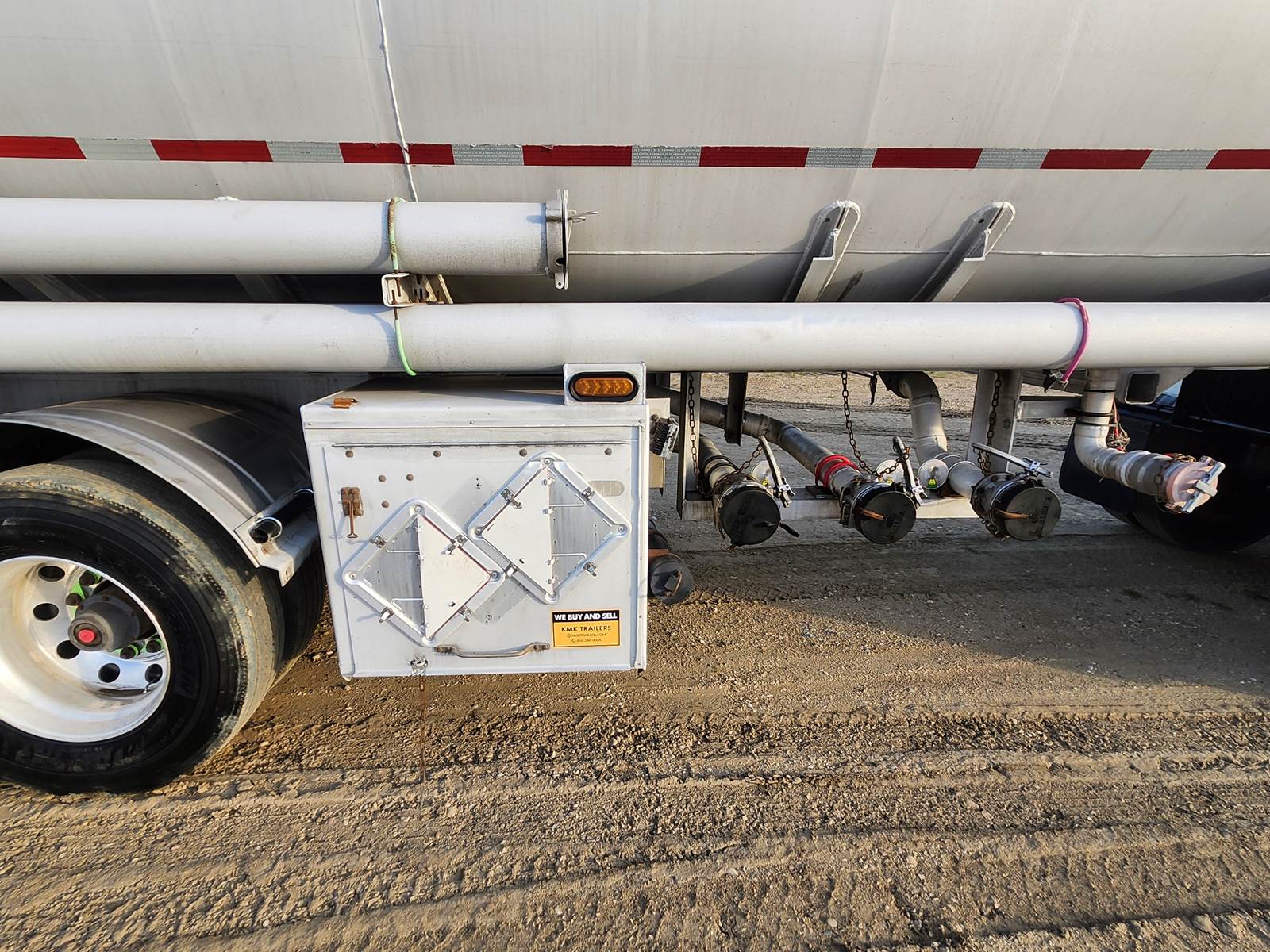

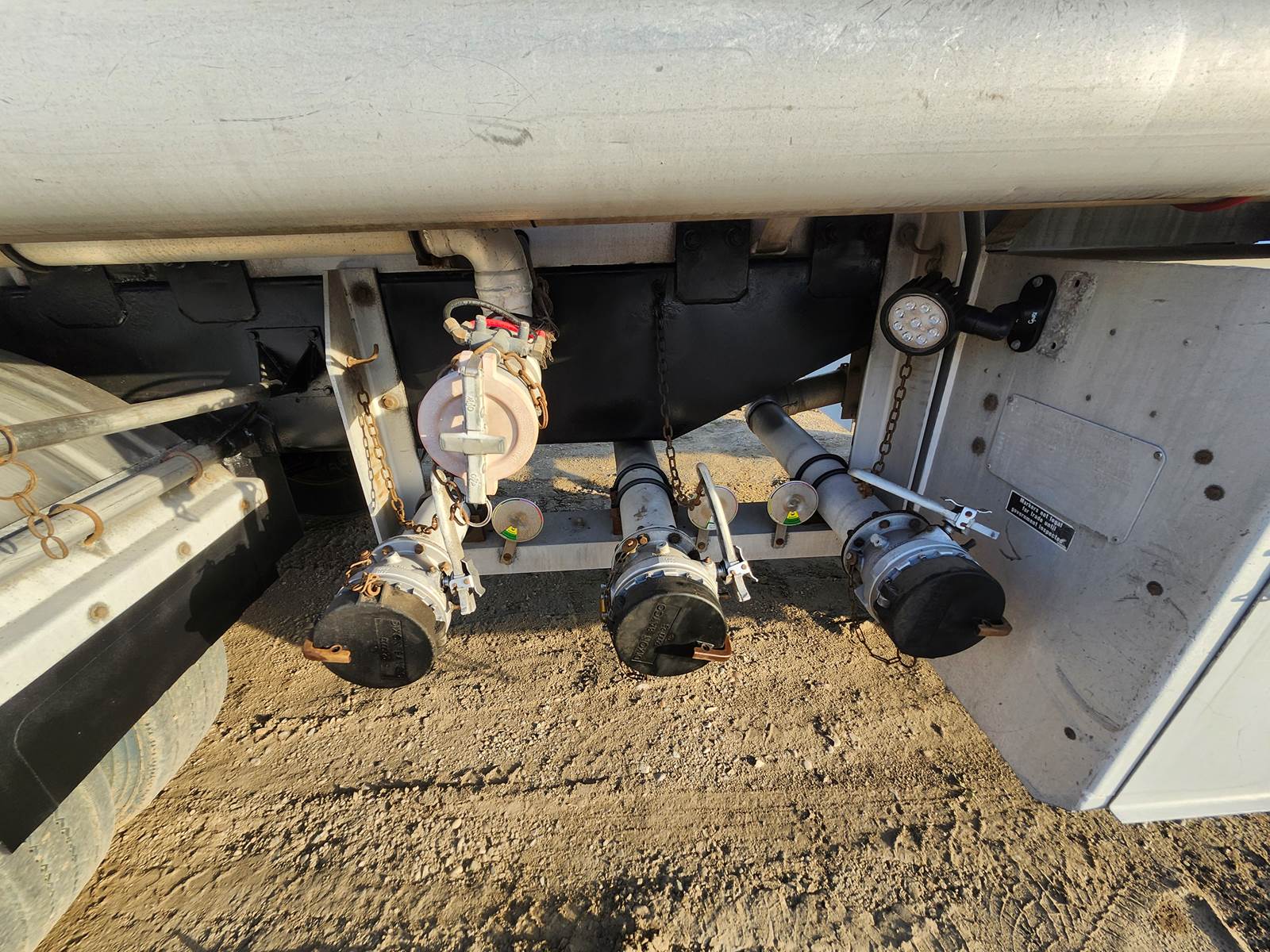

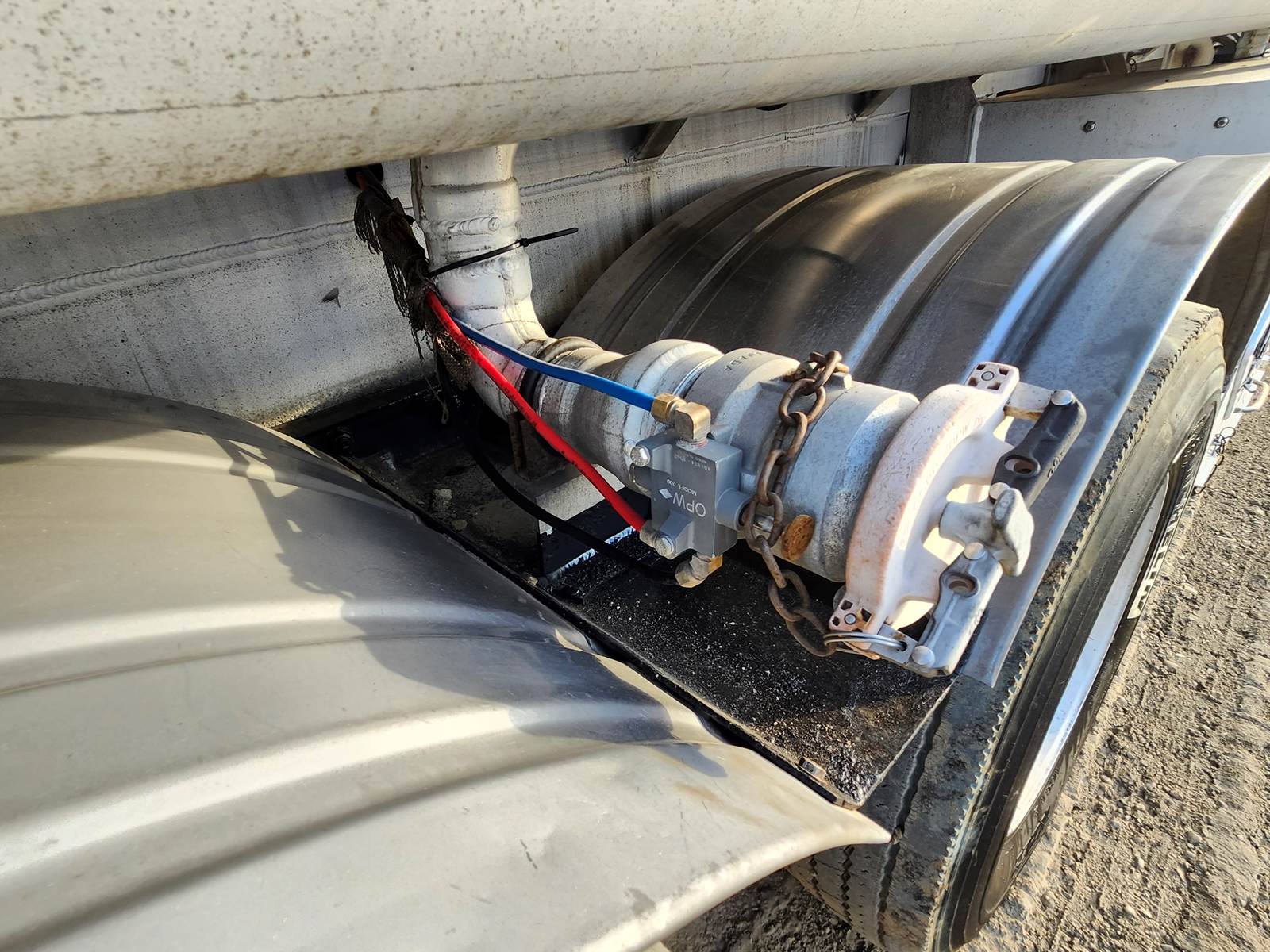

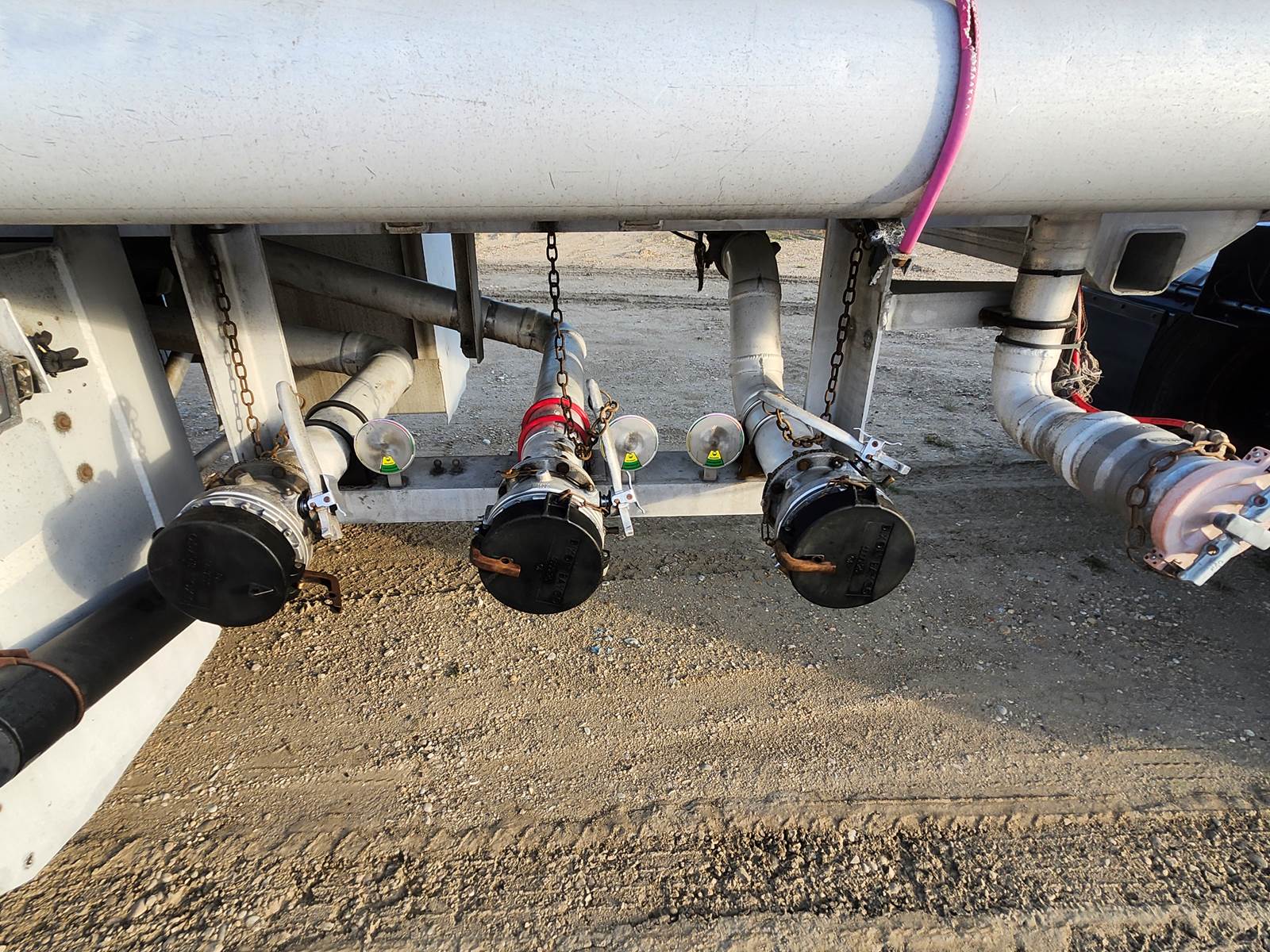

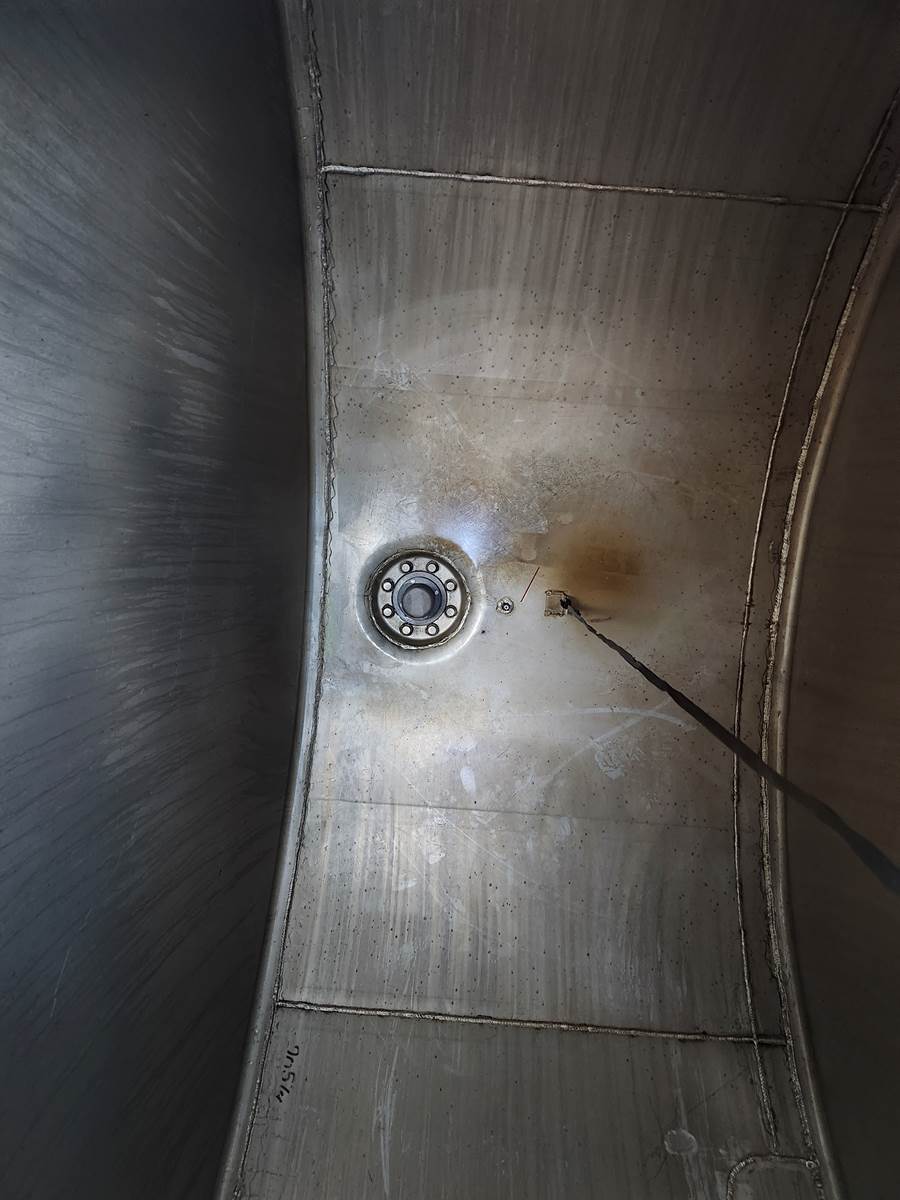

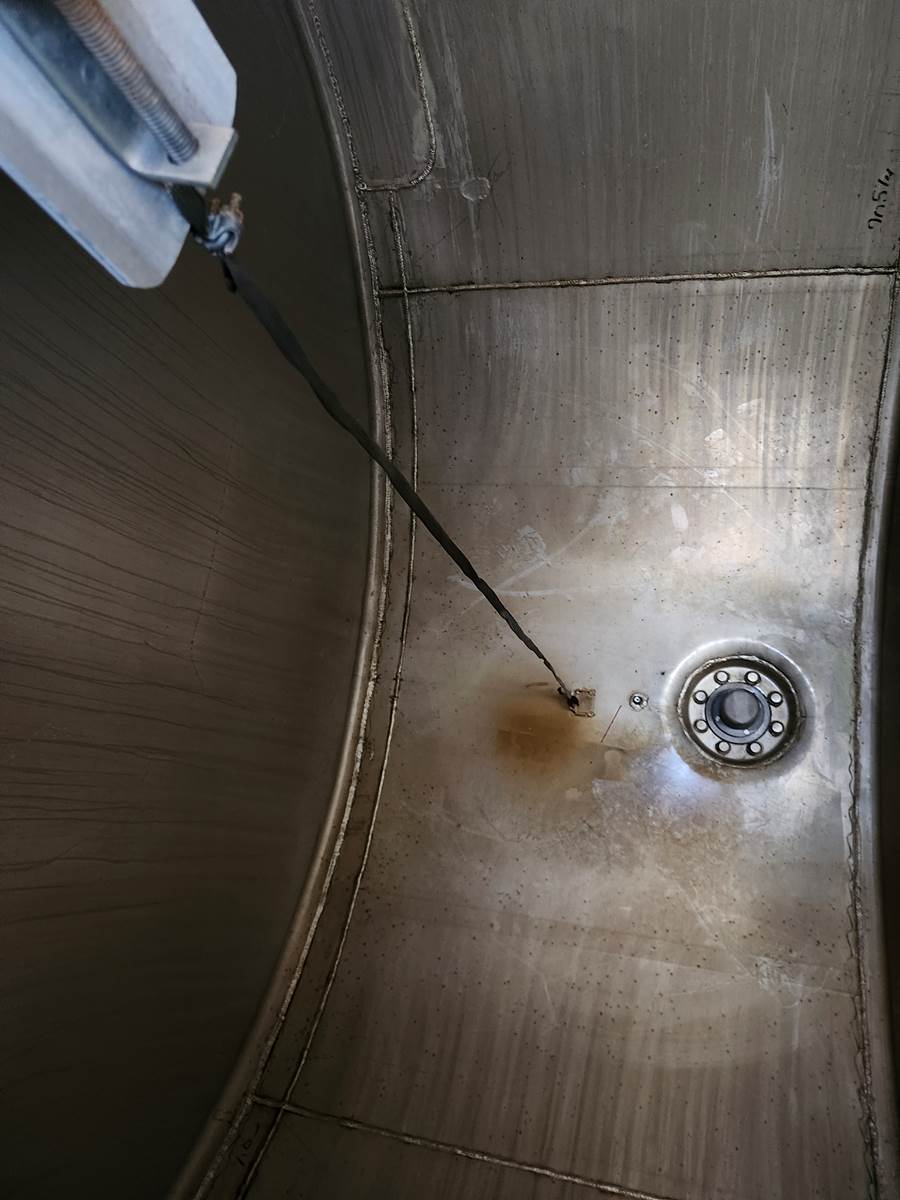

Bottom-loading connections and individual compartment discharge valves

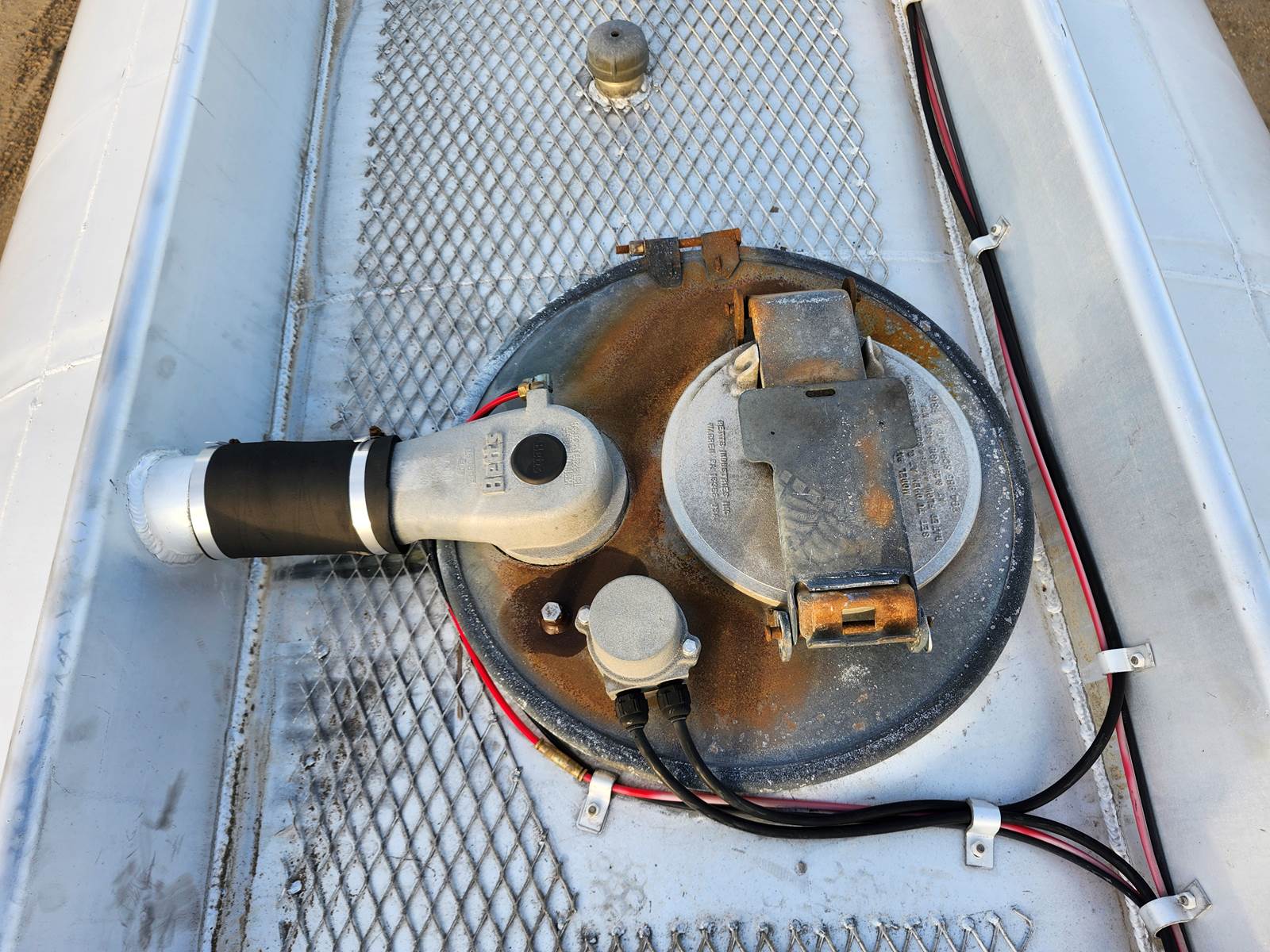

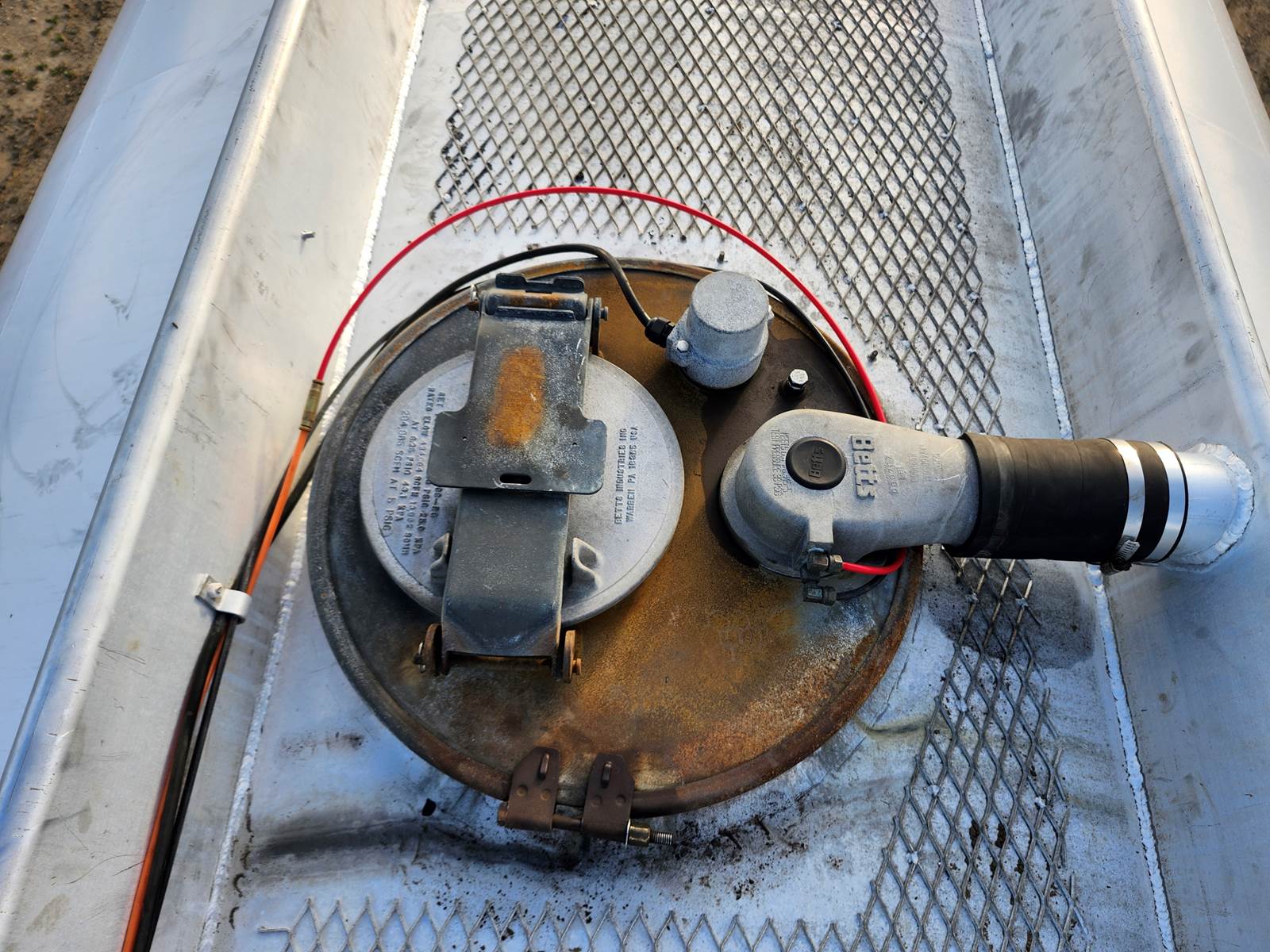

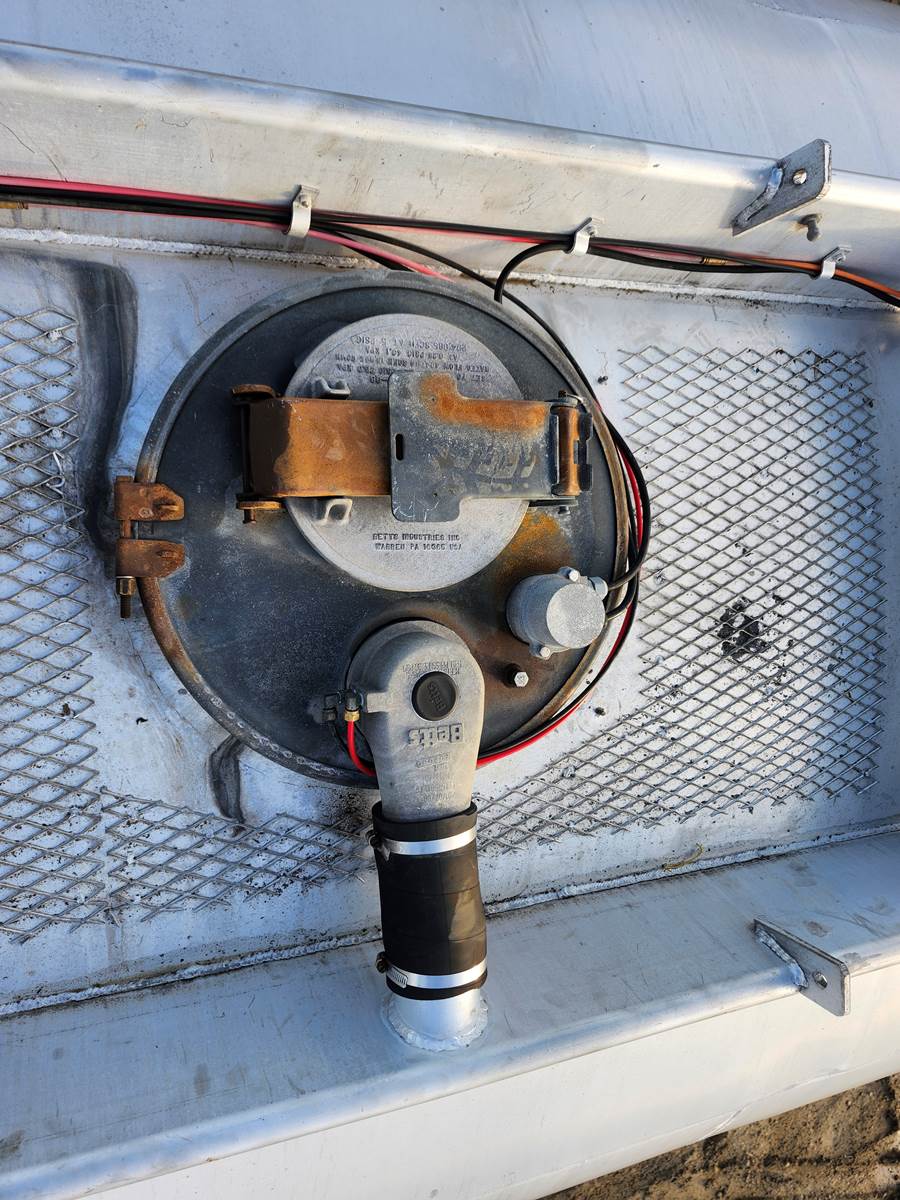

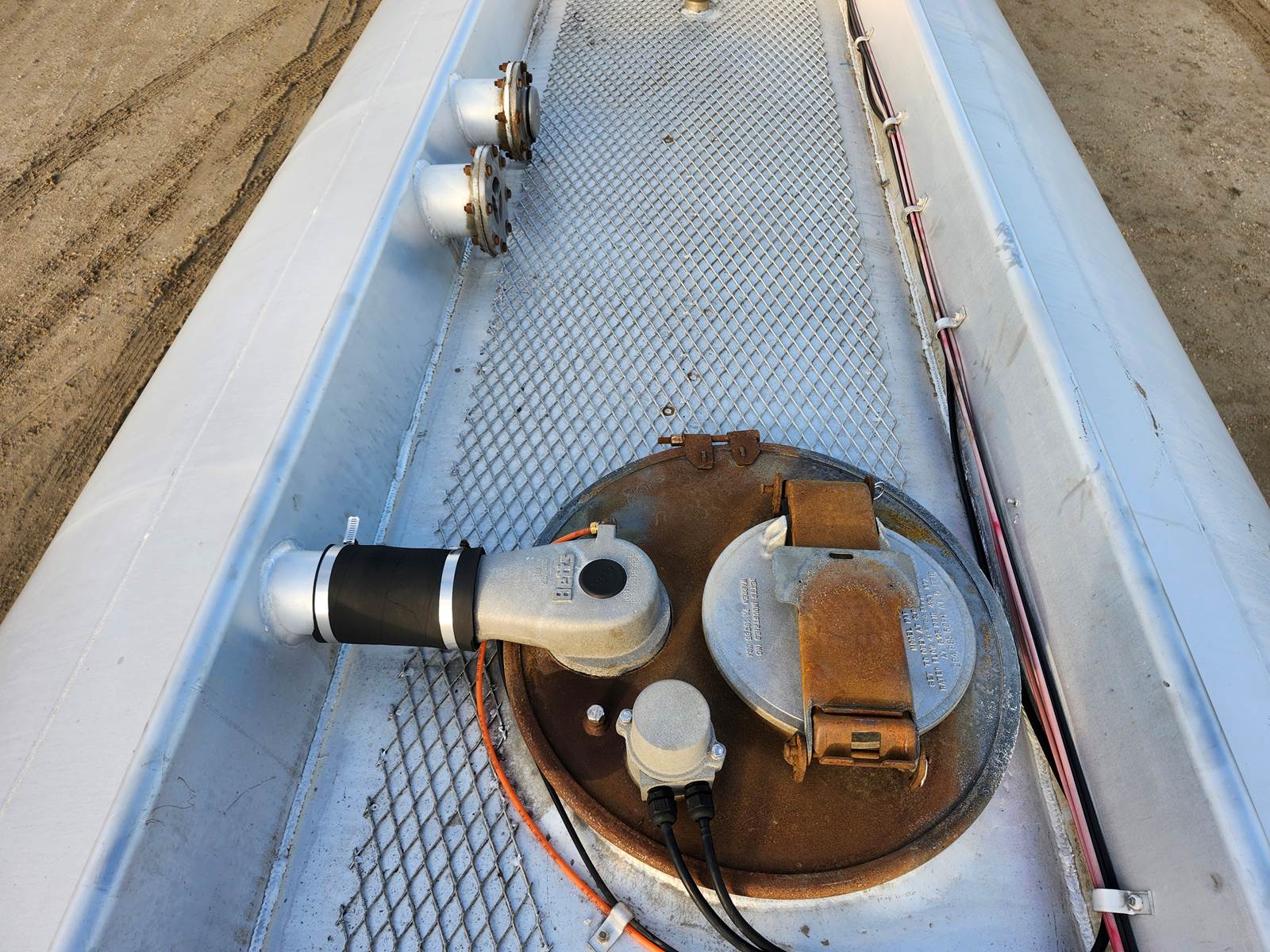

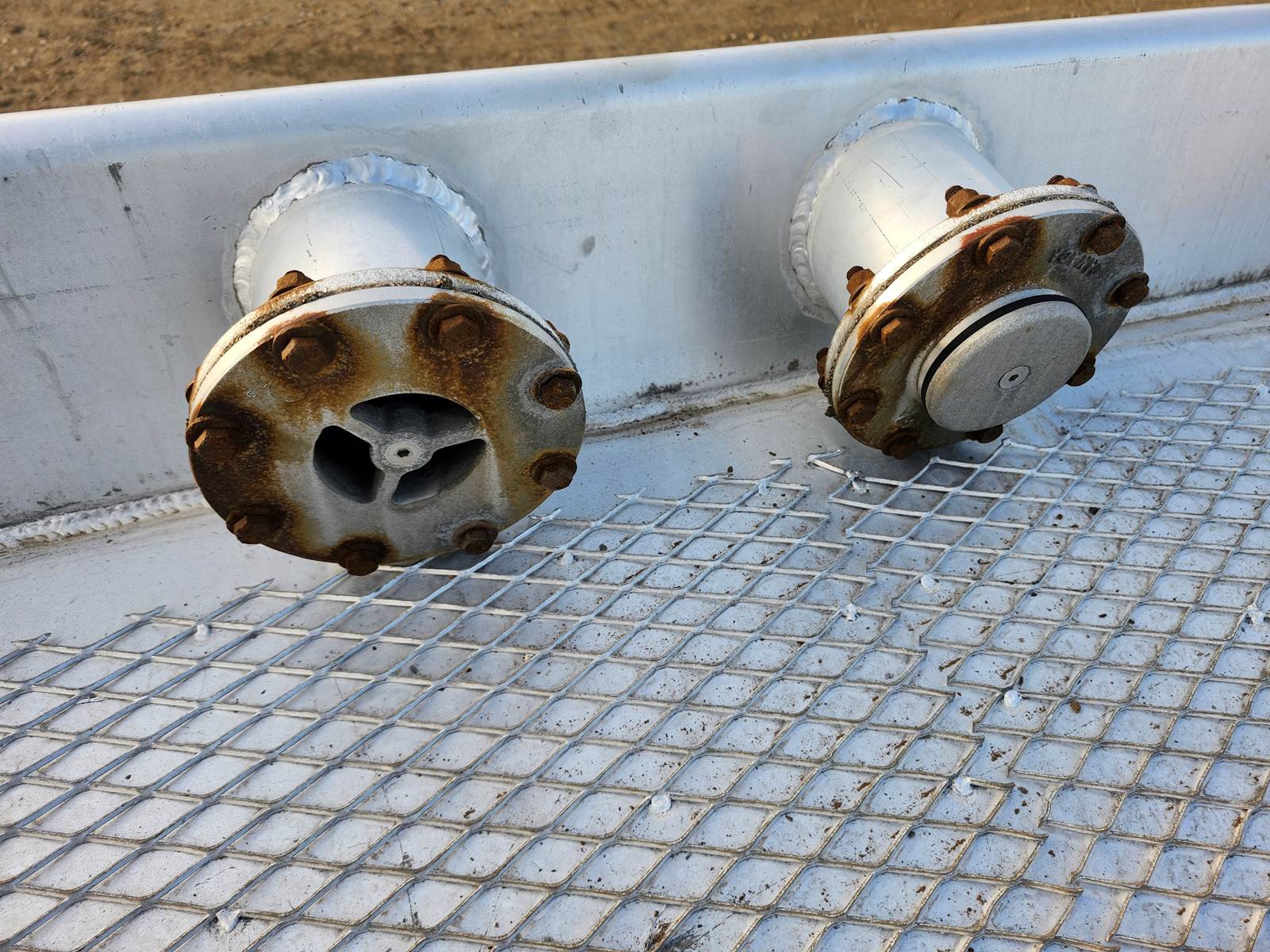

Vapor-recovery plumbing

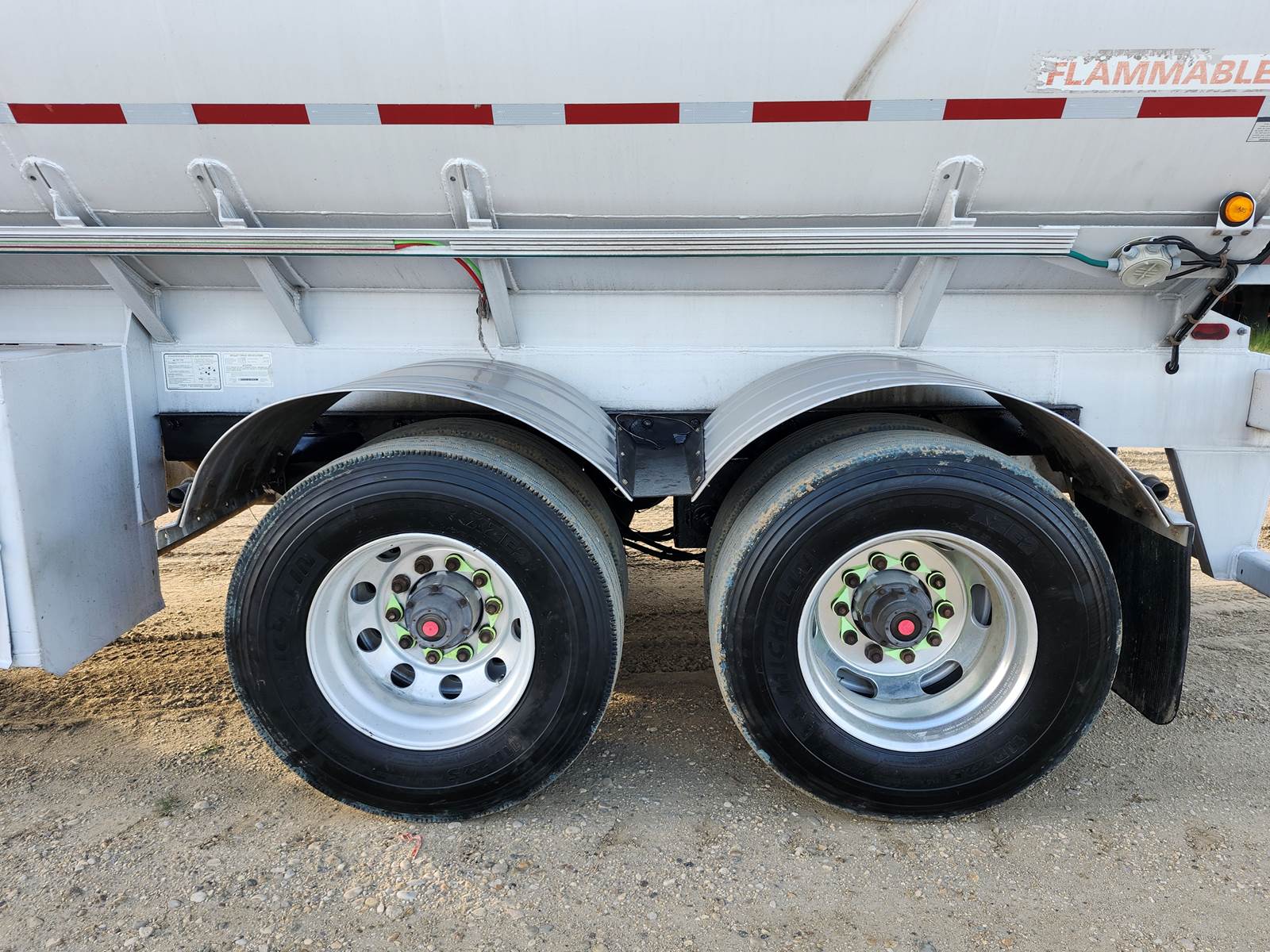

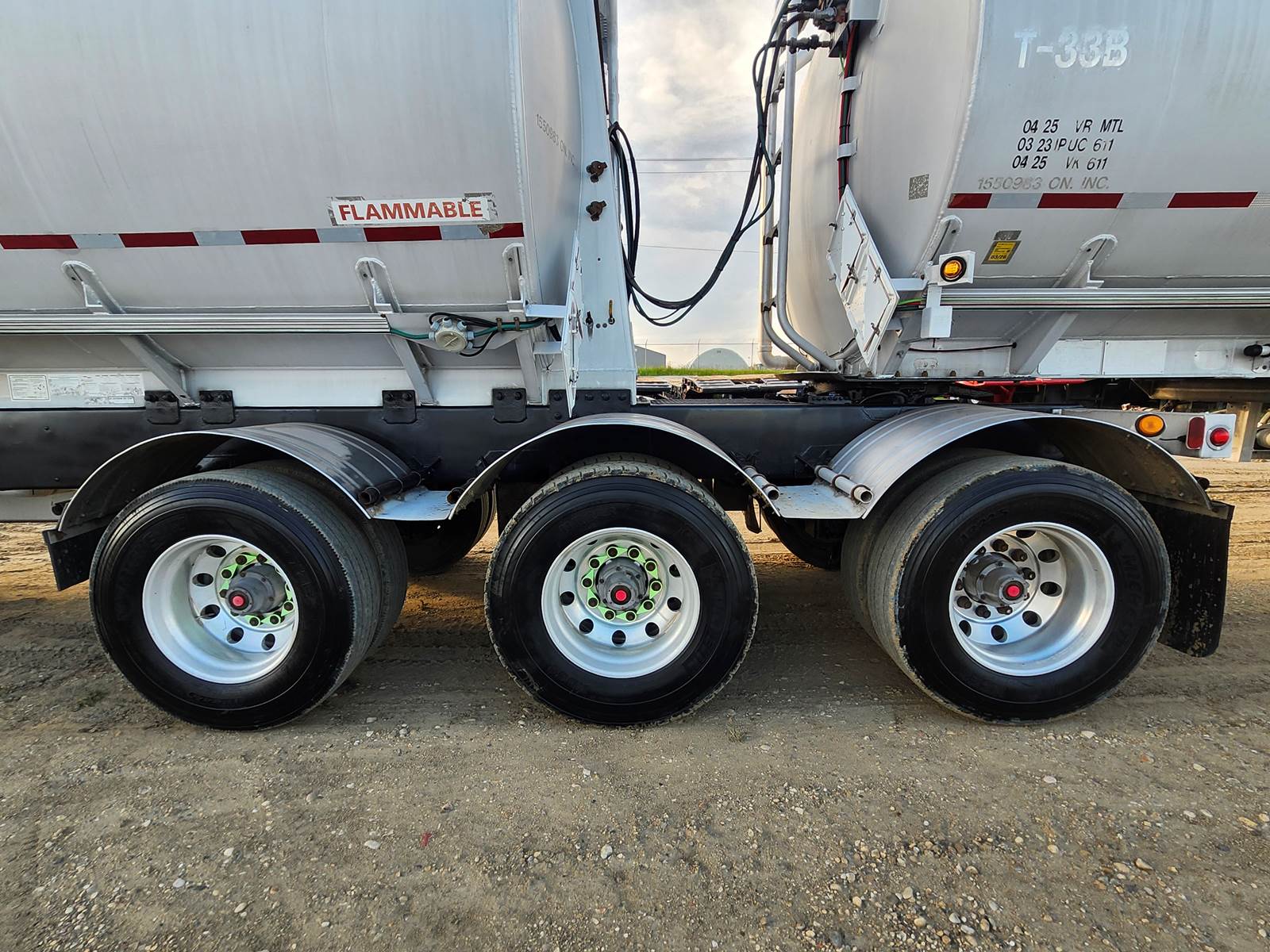

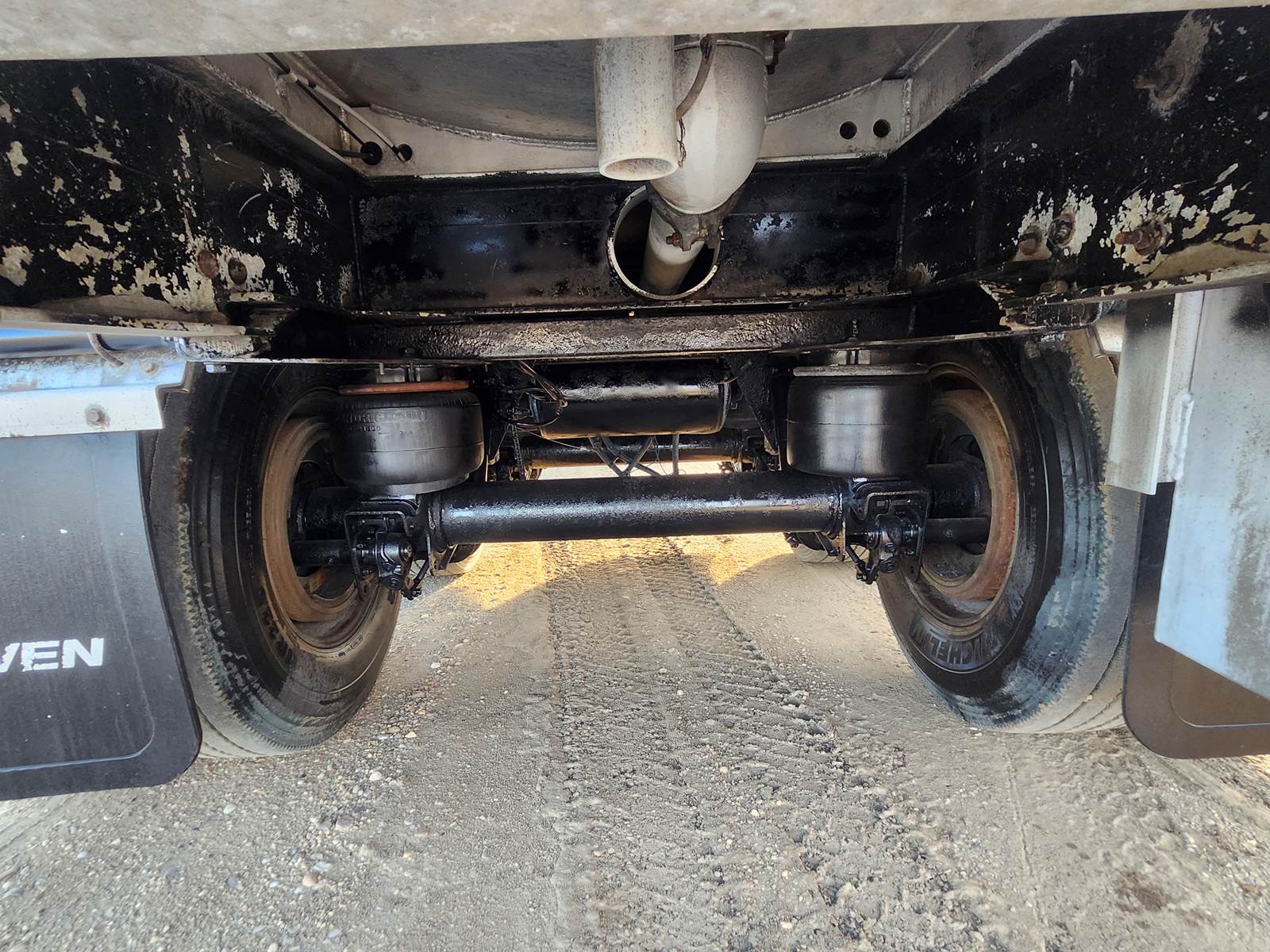

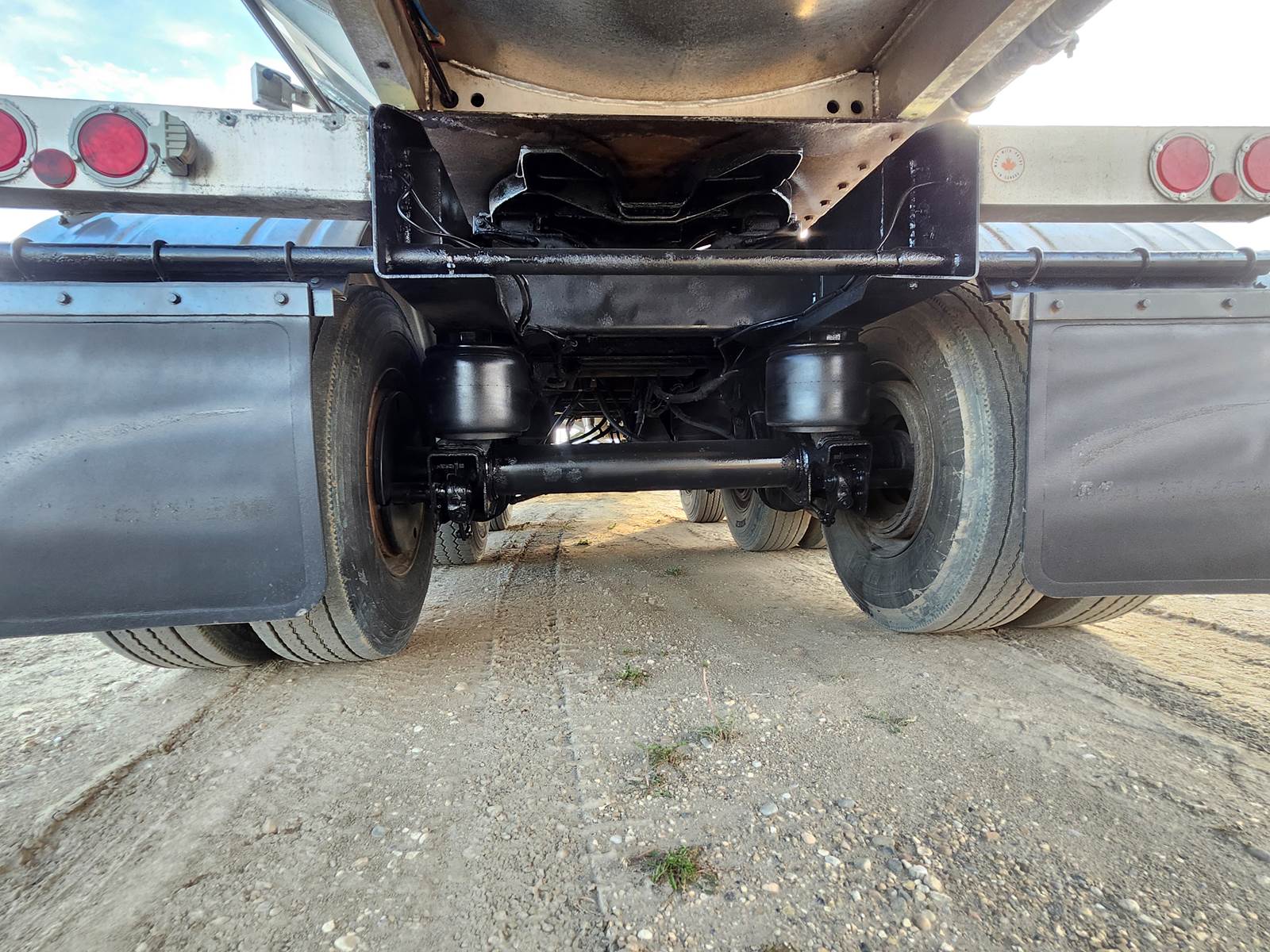

Air Ride suspension

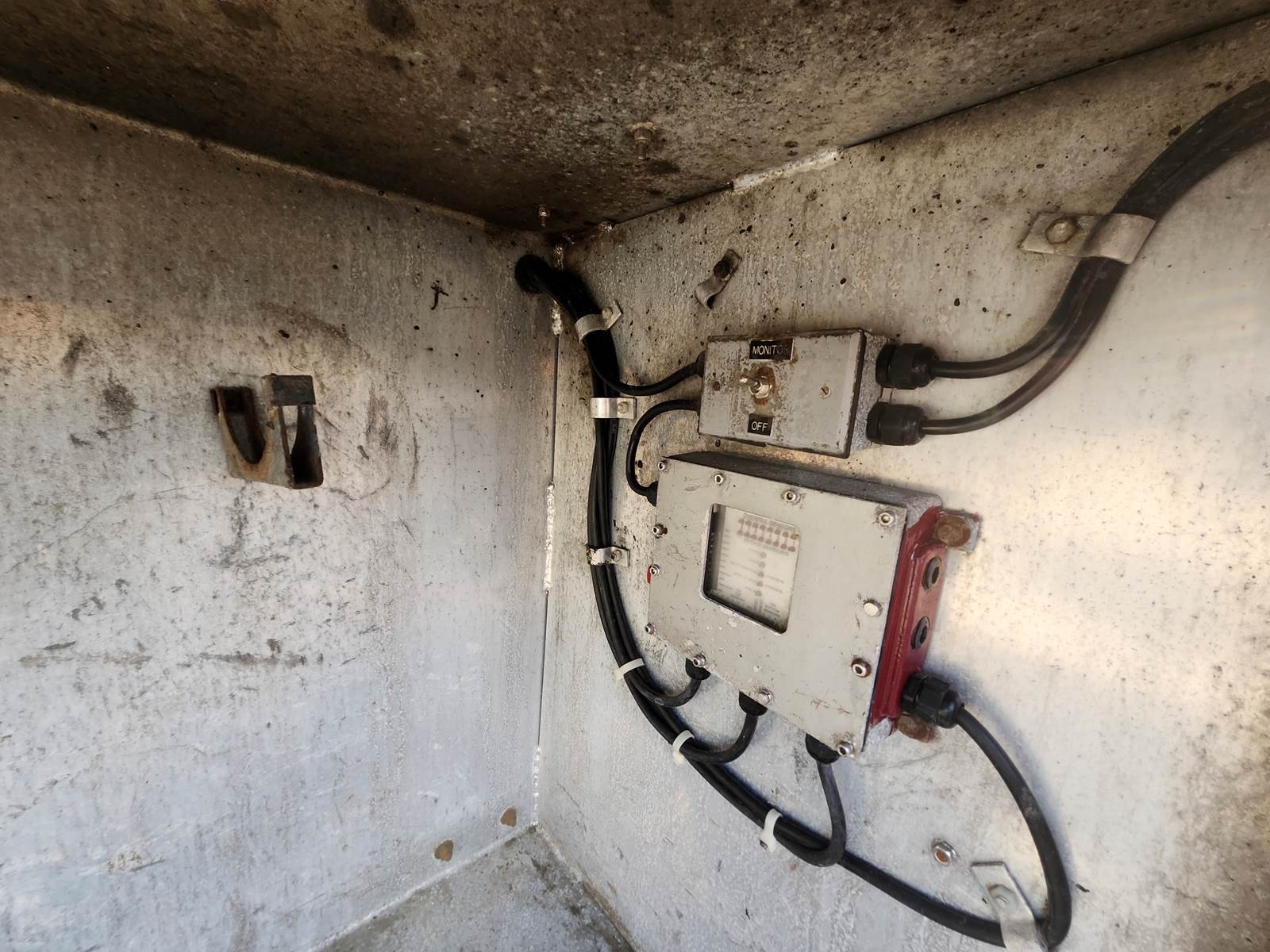

Overfill prevention system

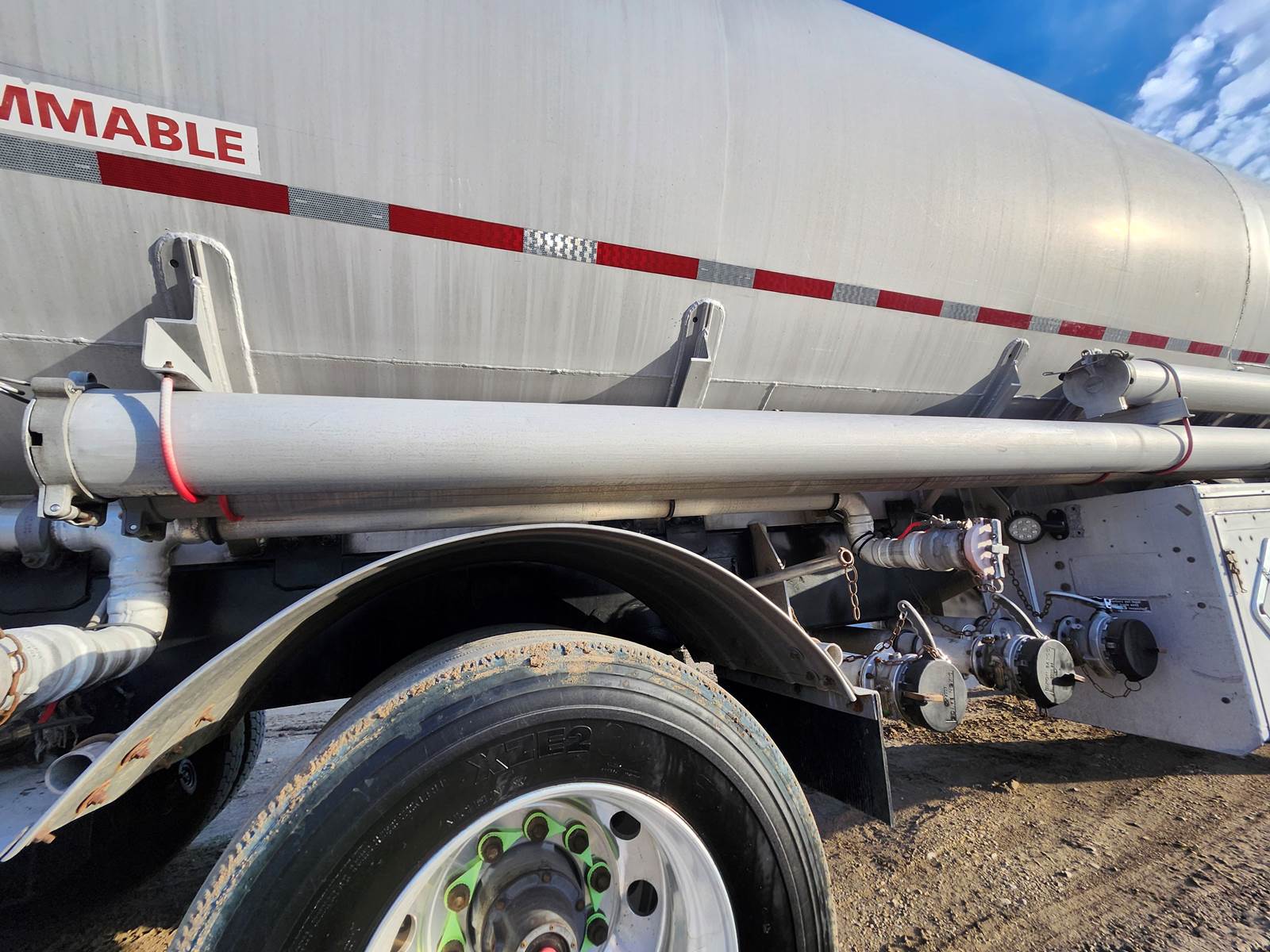

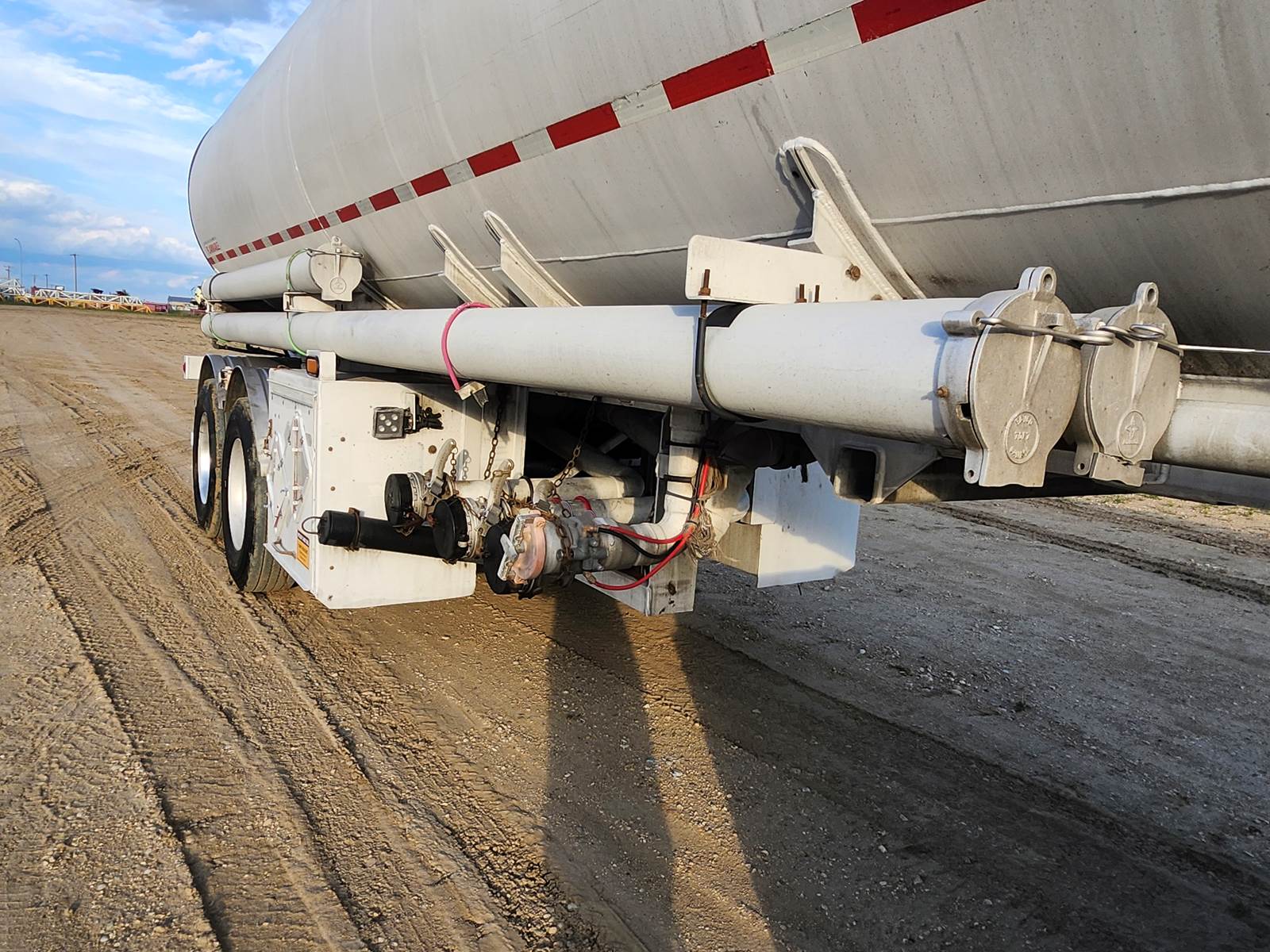

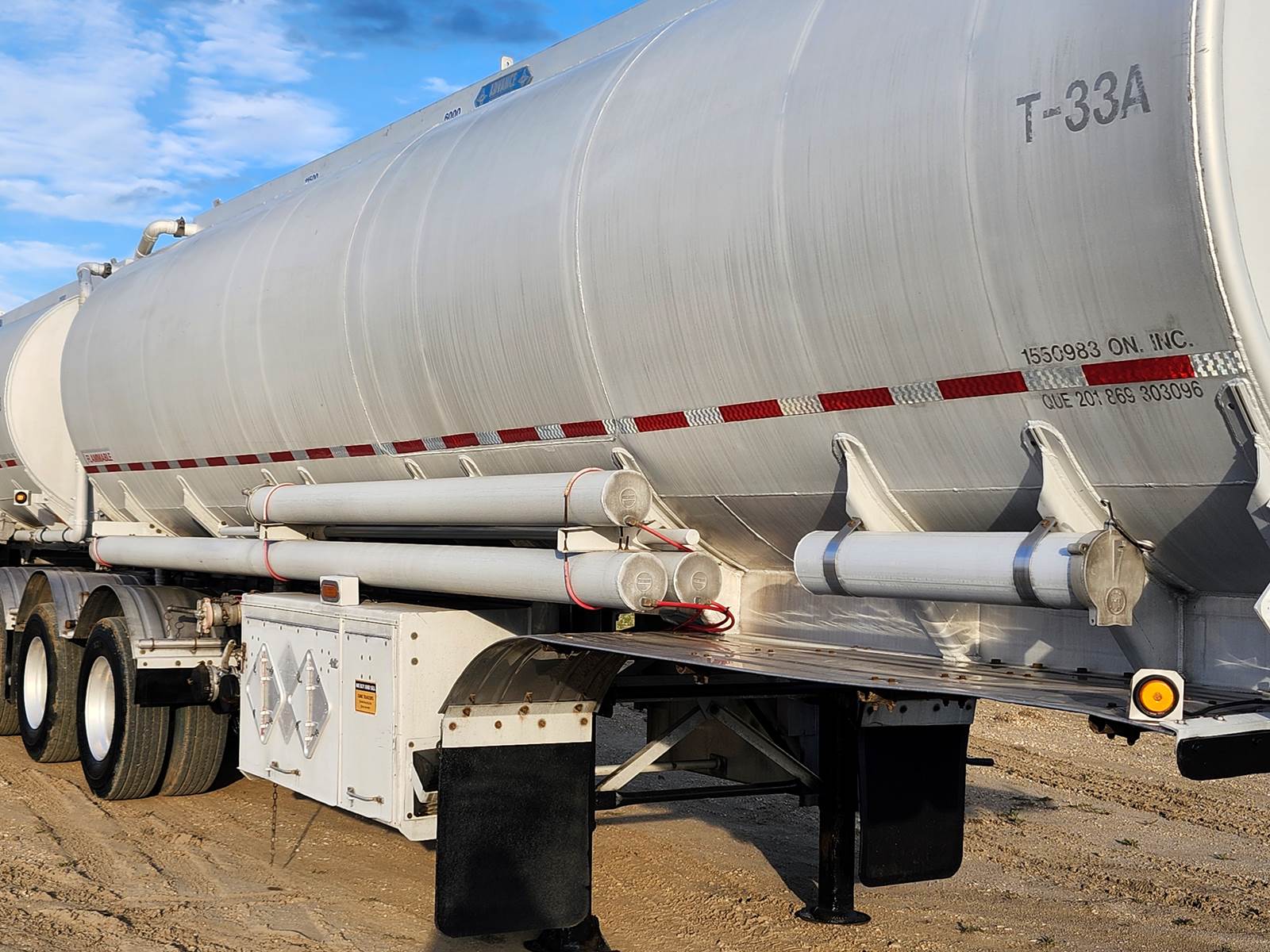

Side-mounted hose storage tubes

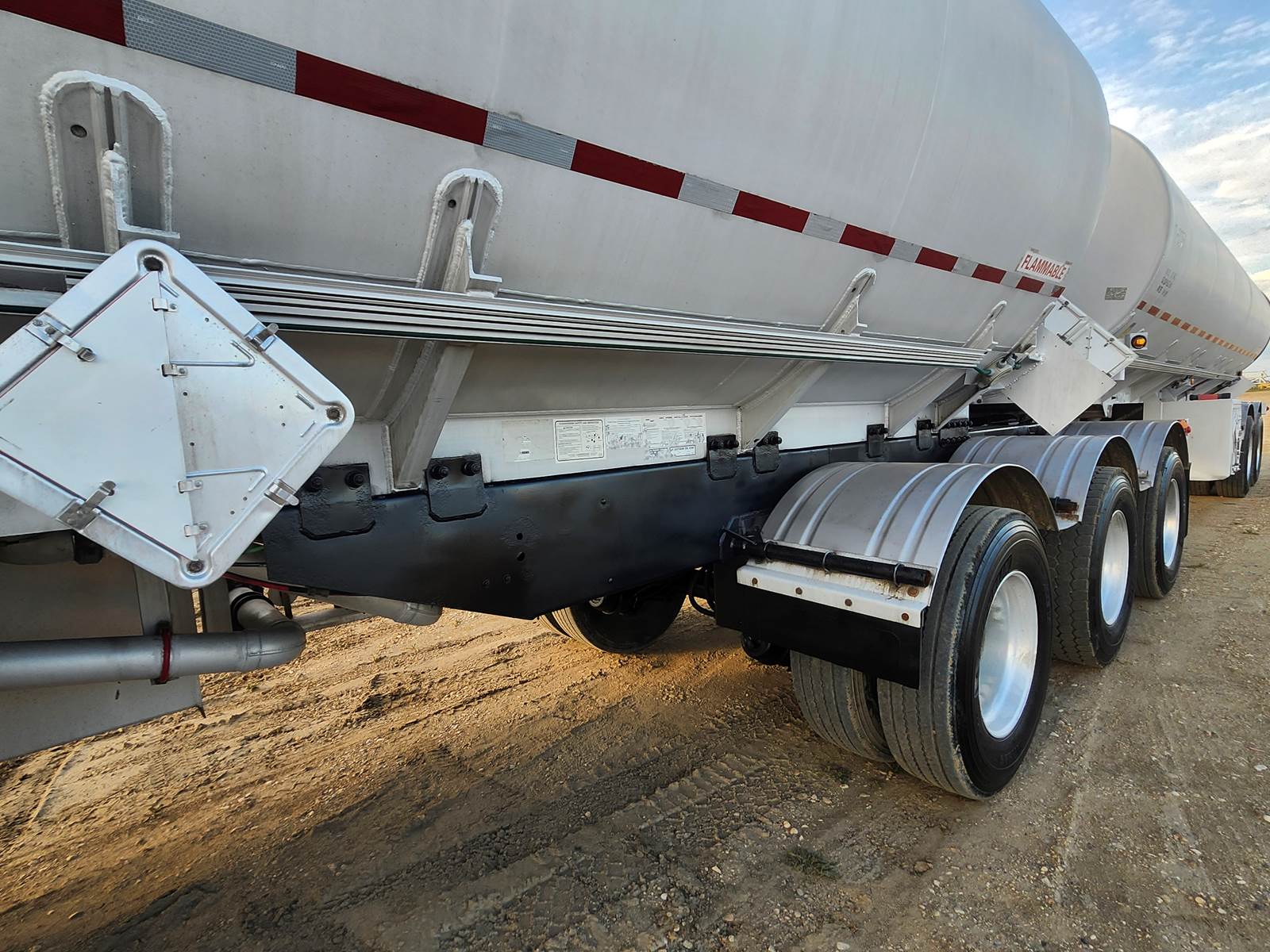

Aluminum wheels with 11R22.5 tires

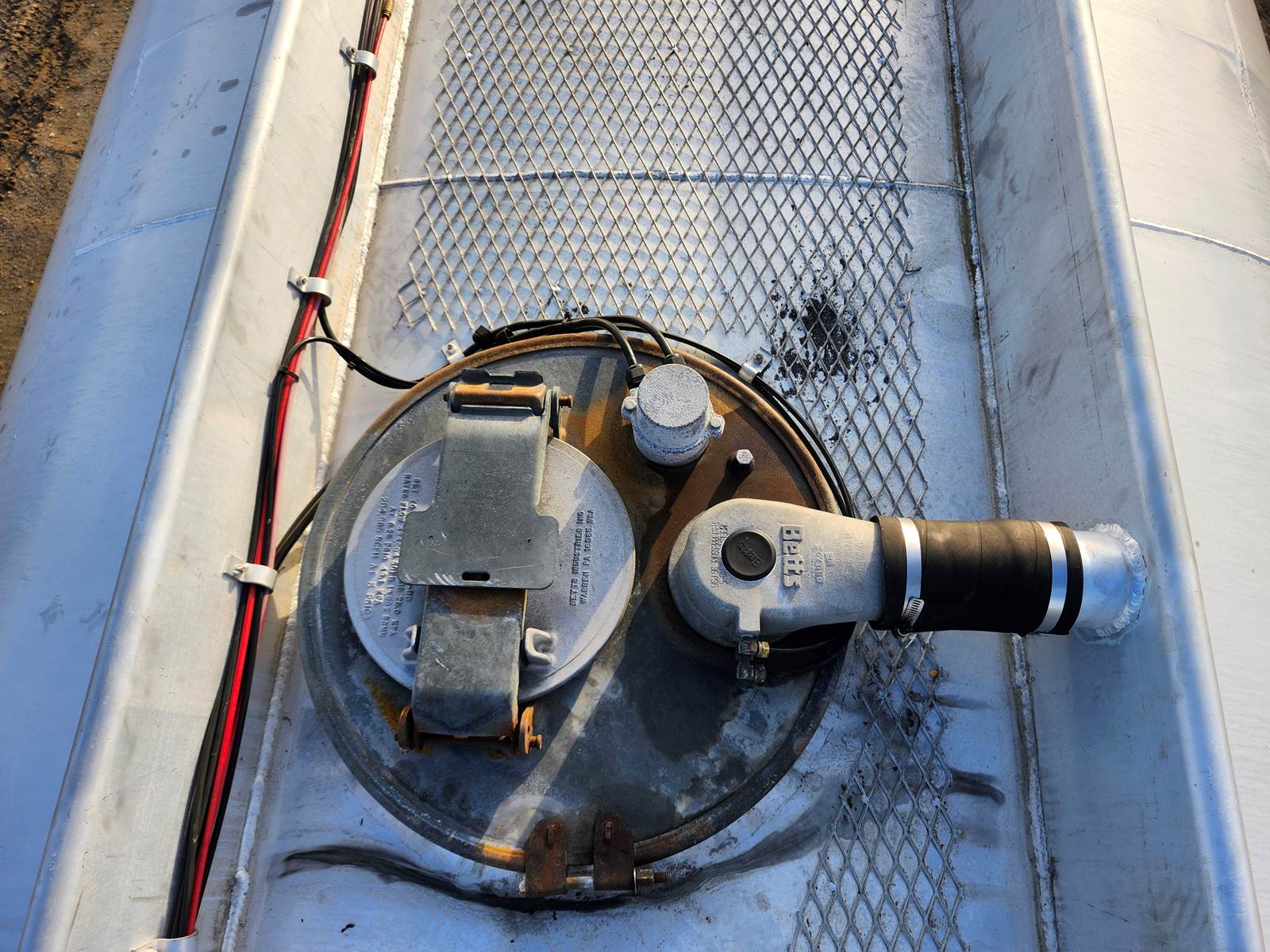

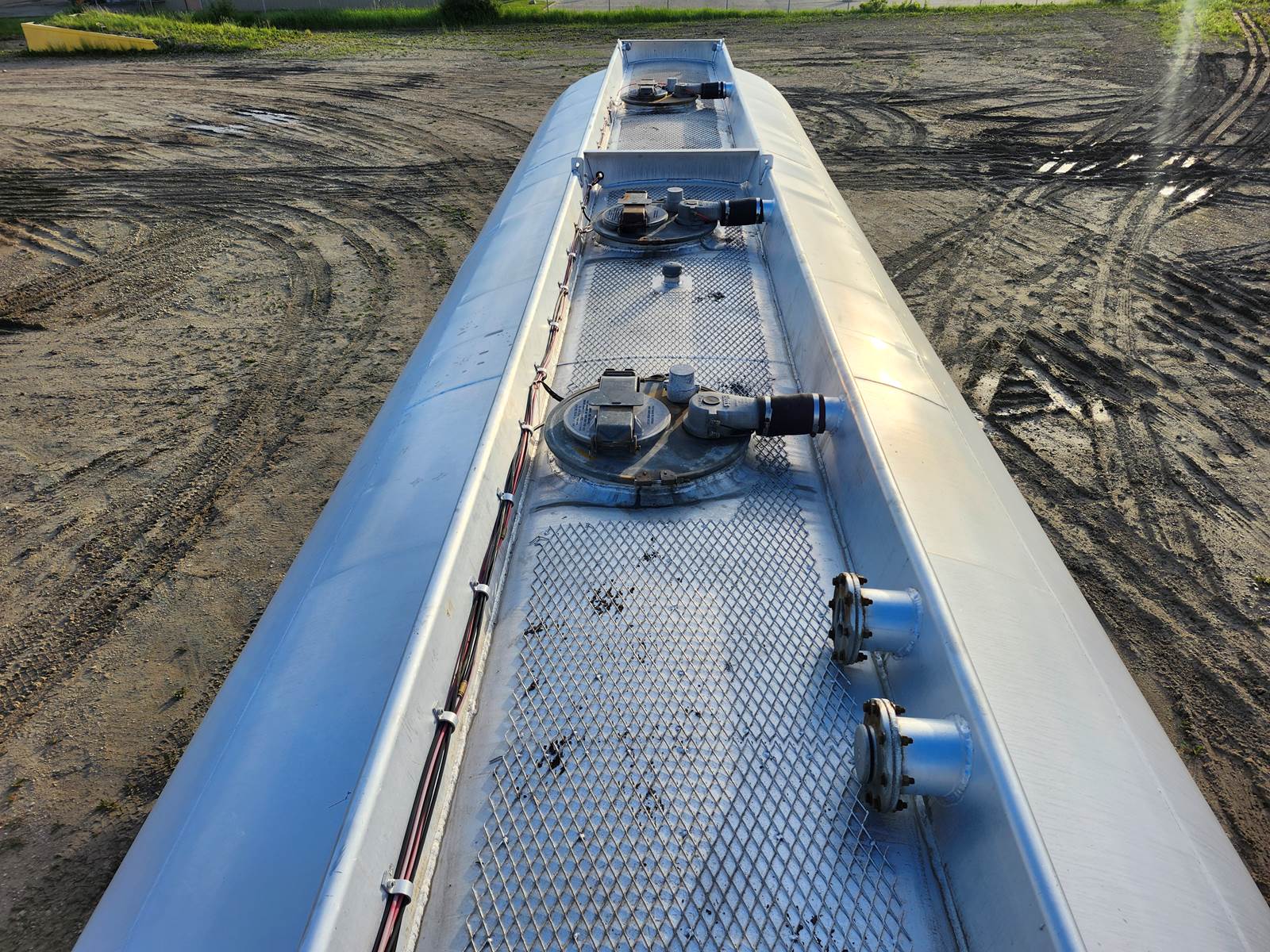

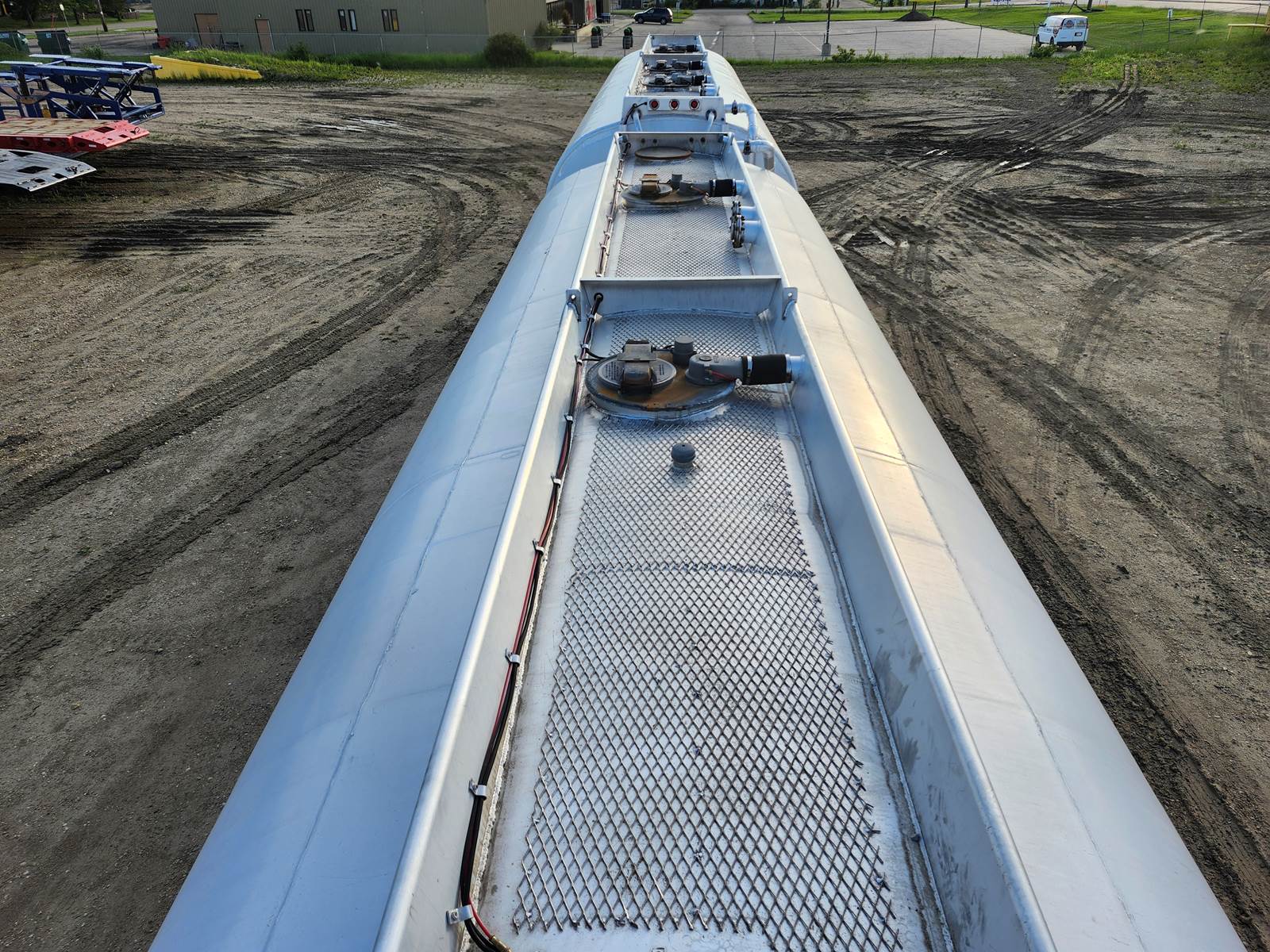

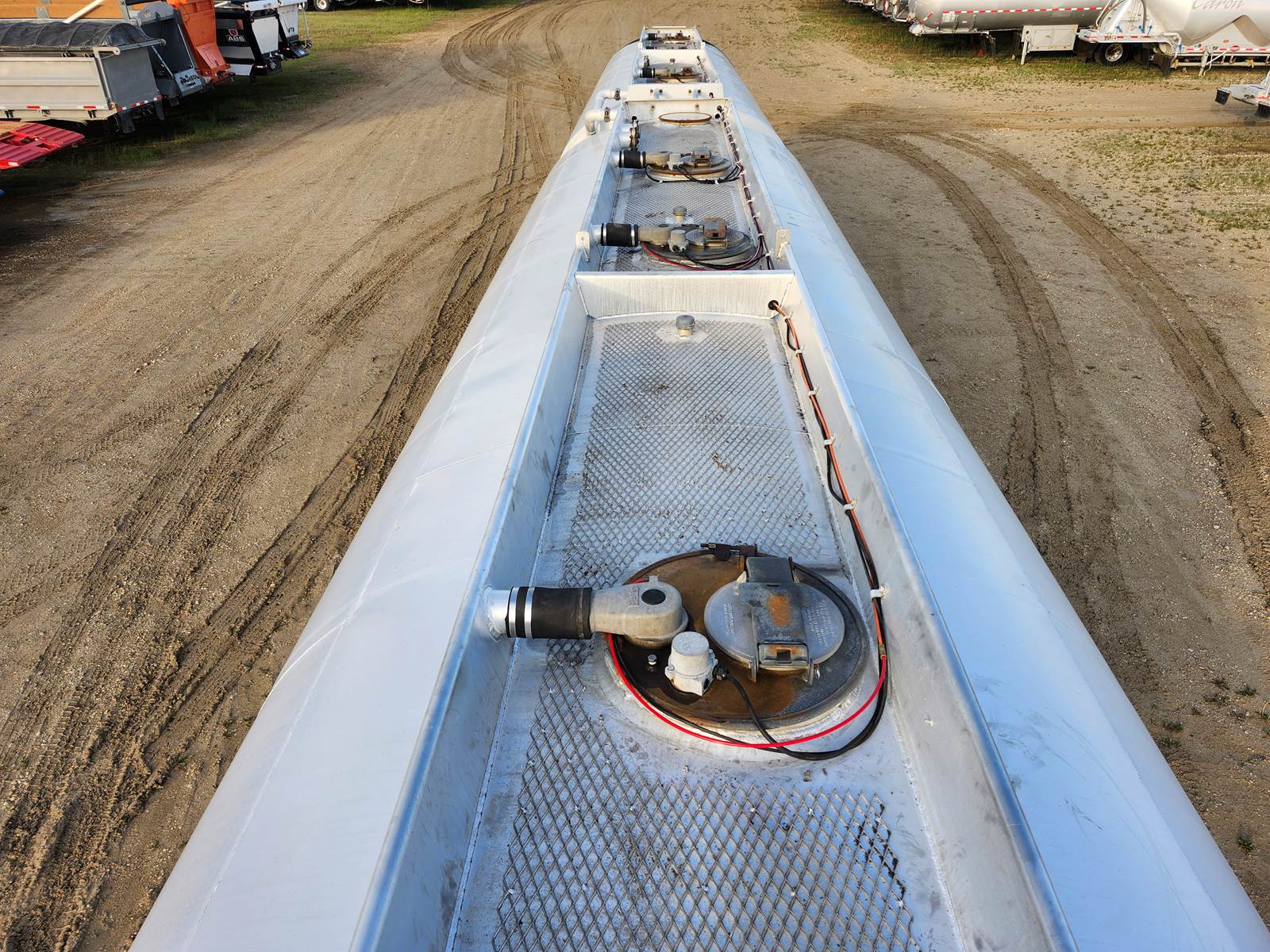

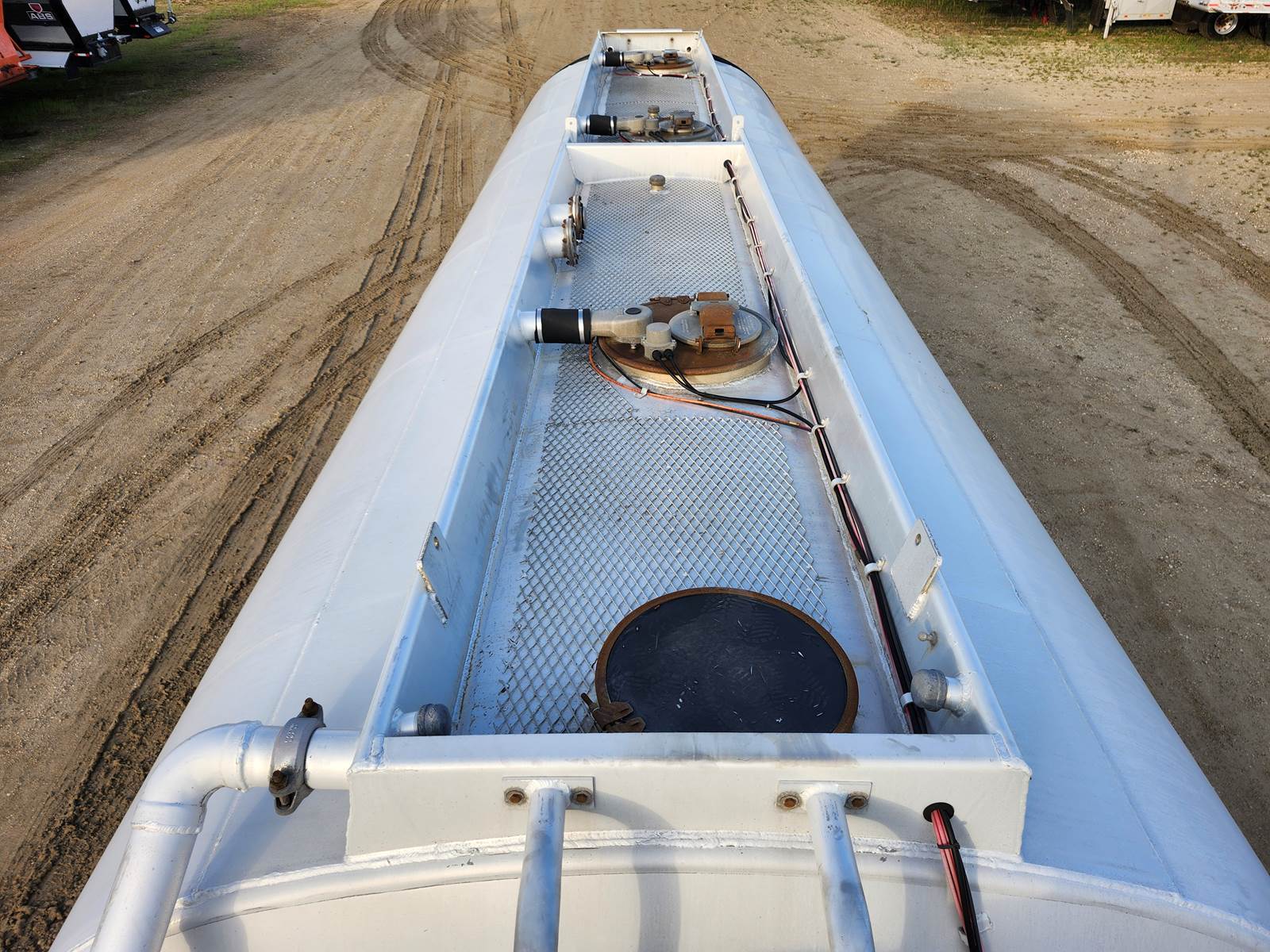

Top walkways and access ladders

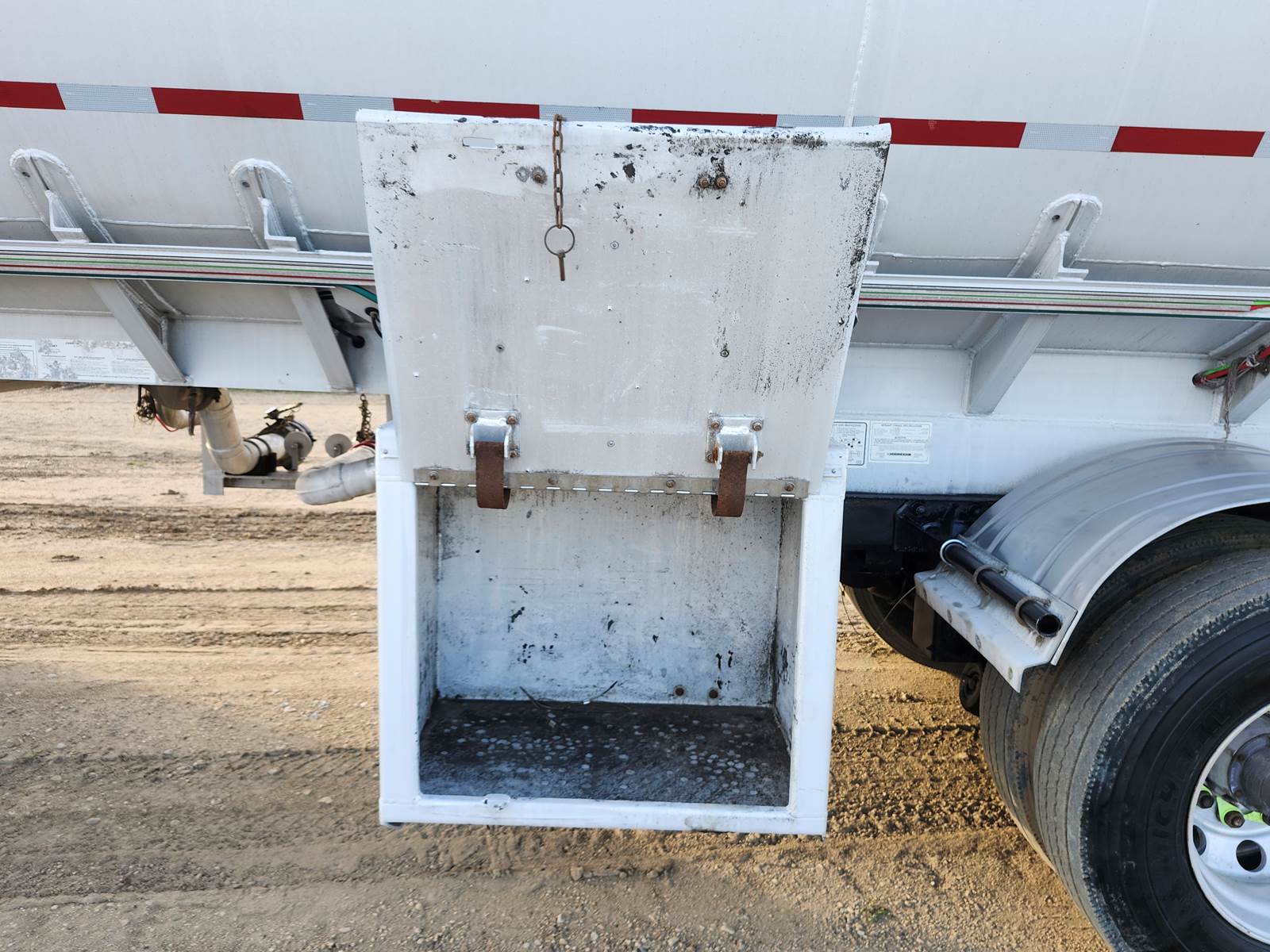

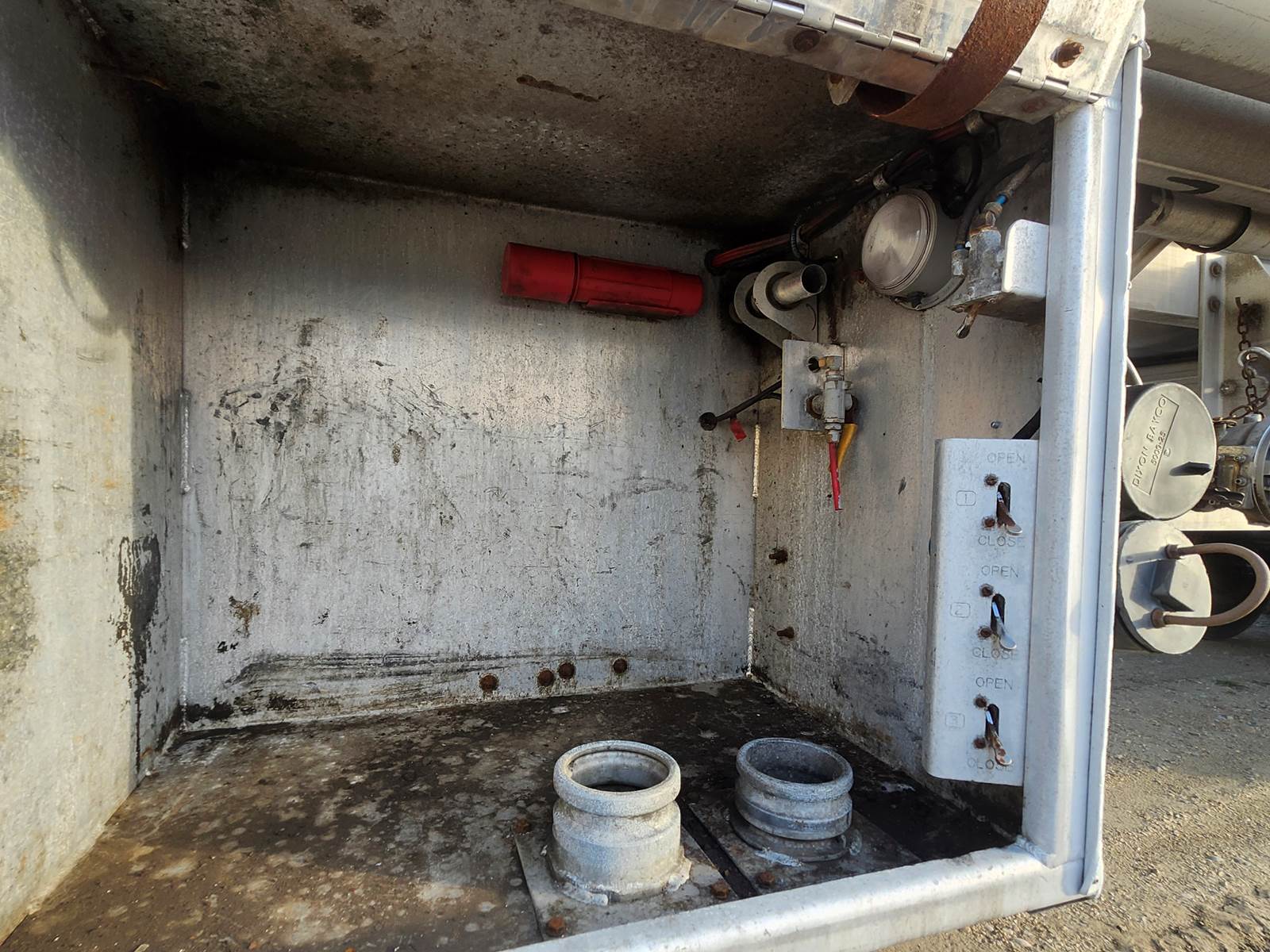

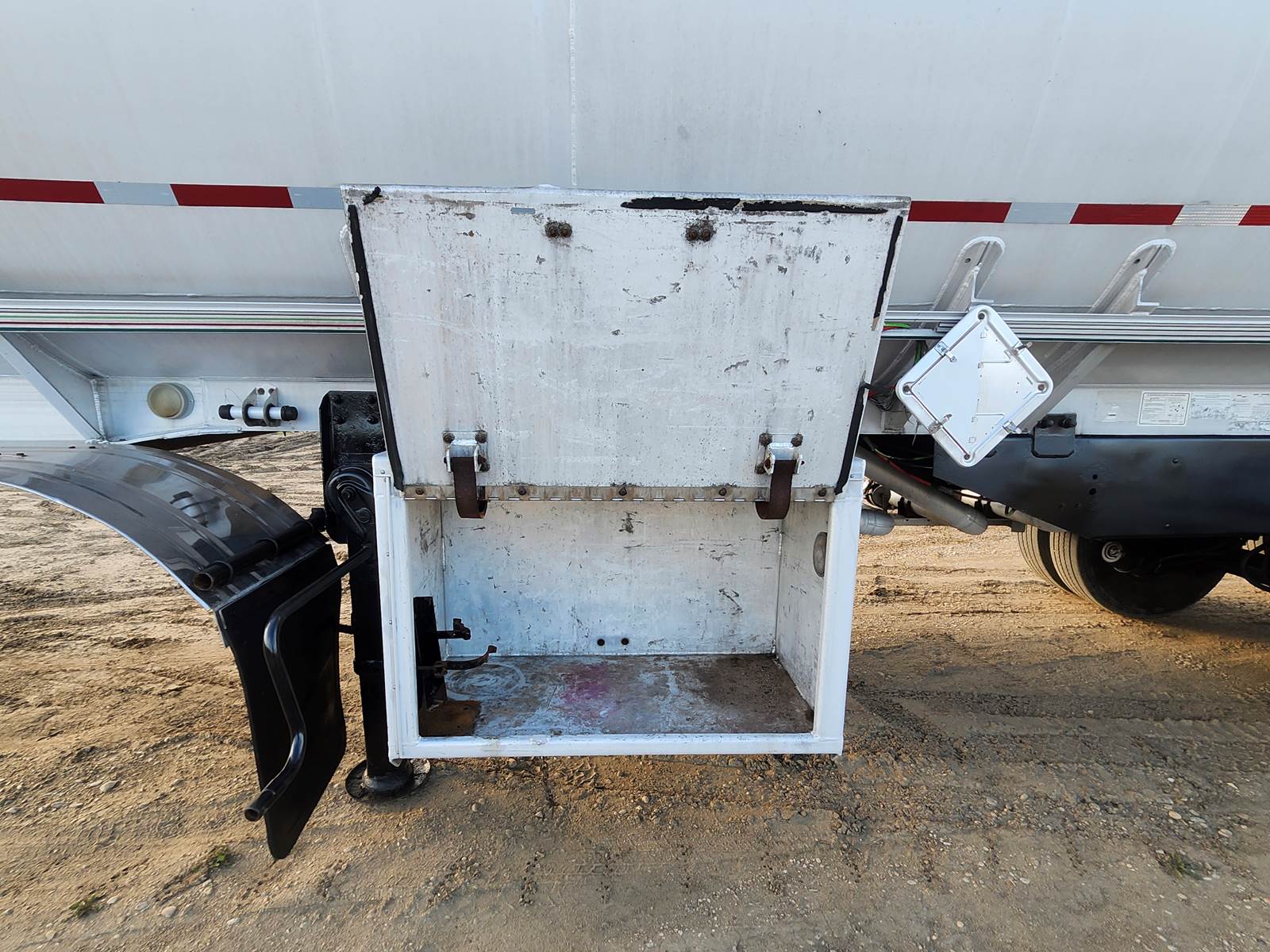

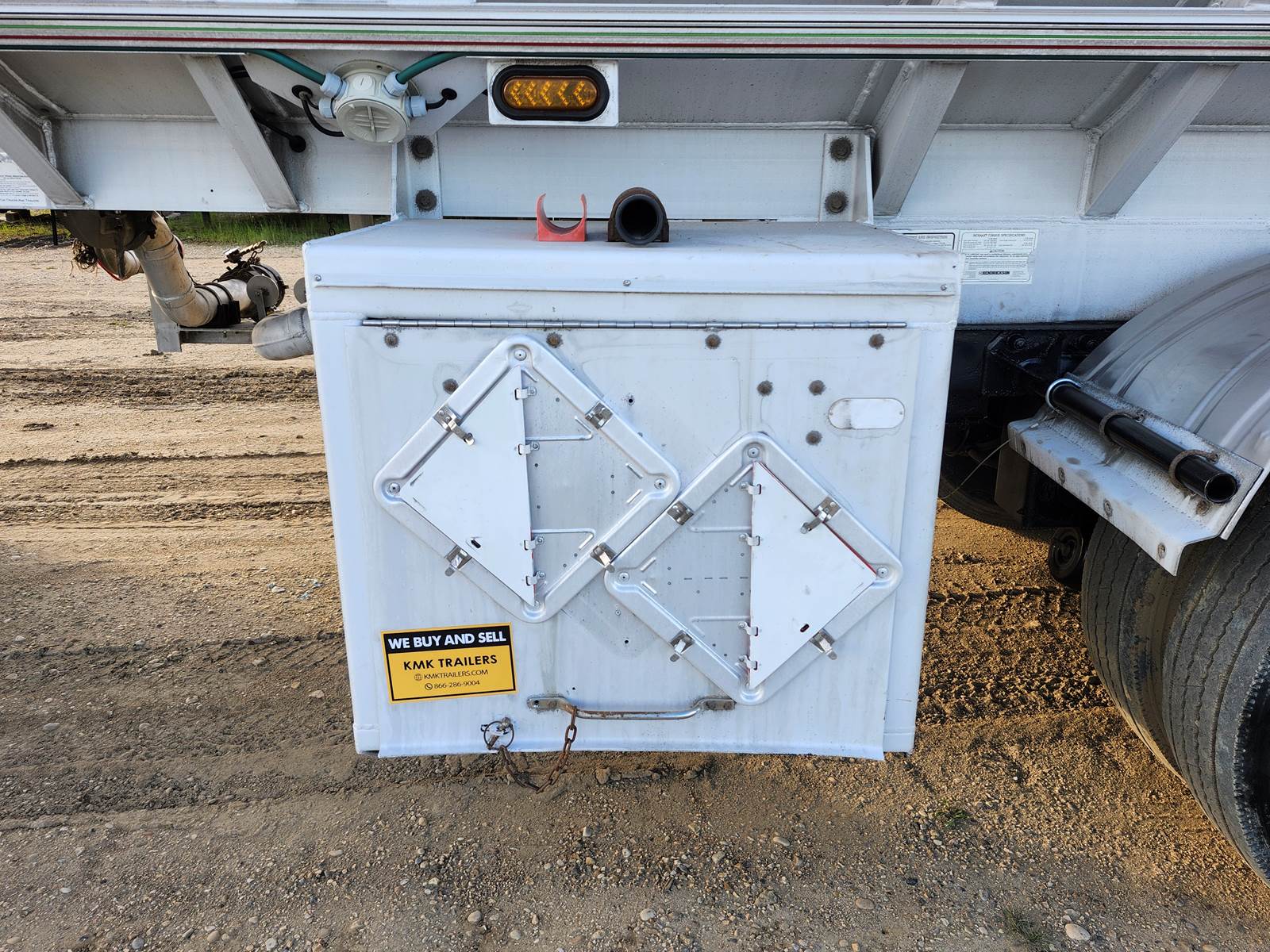

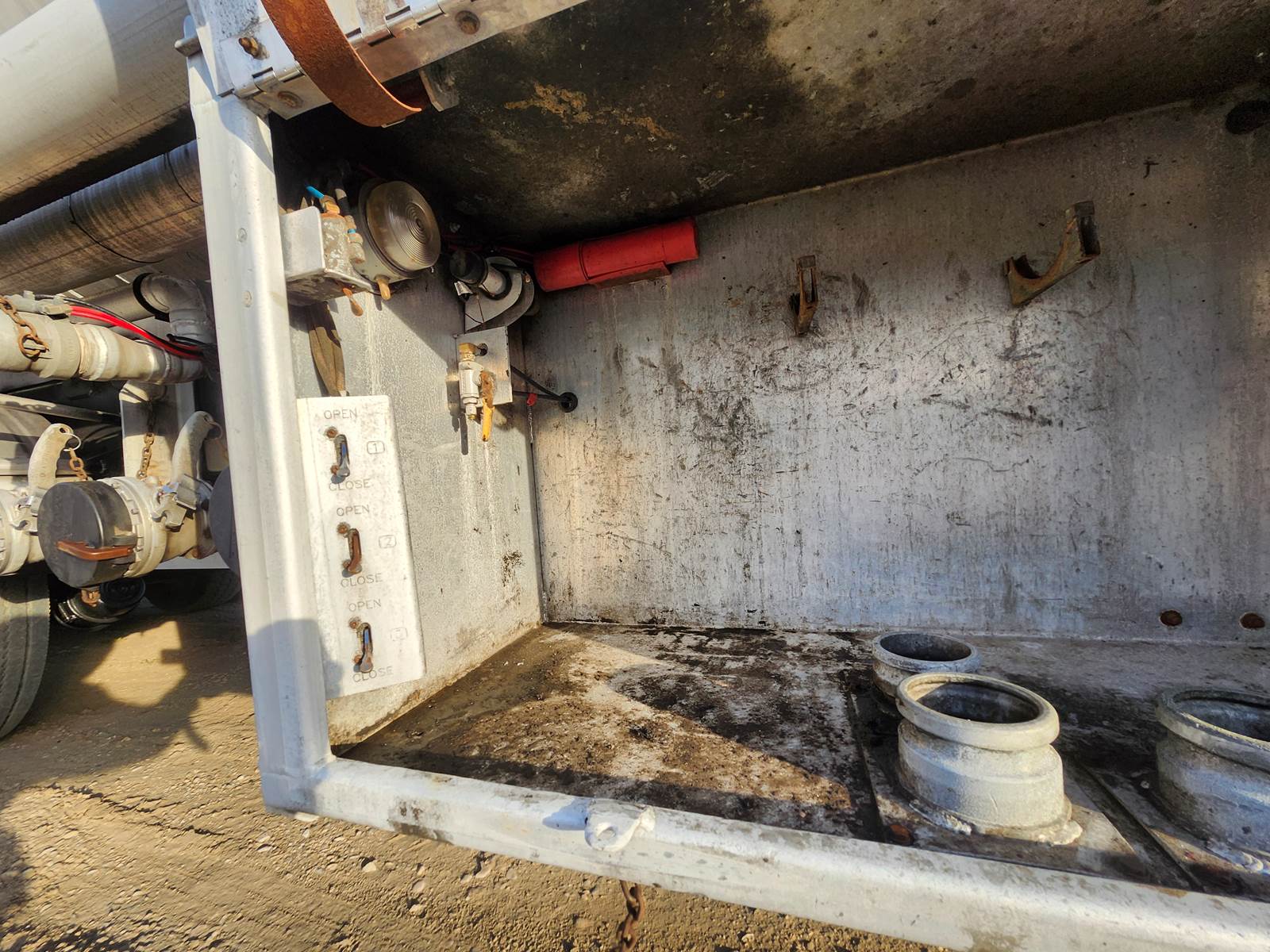

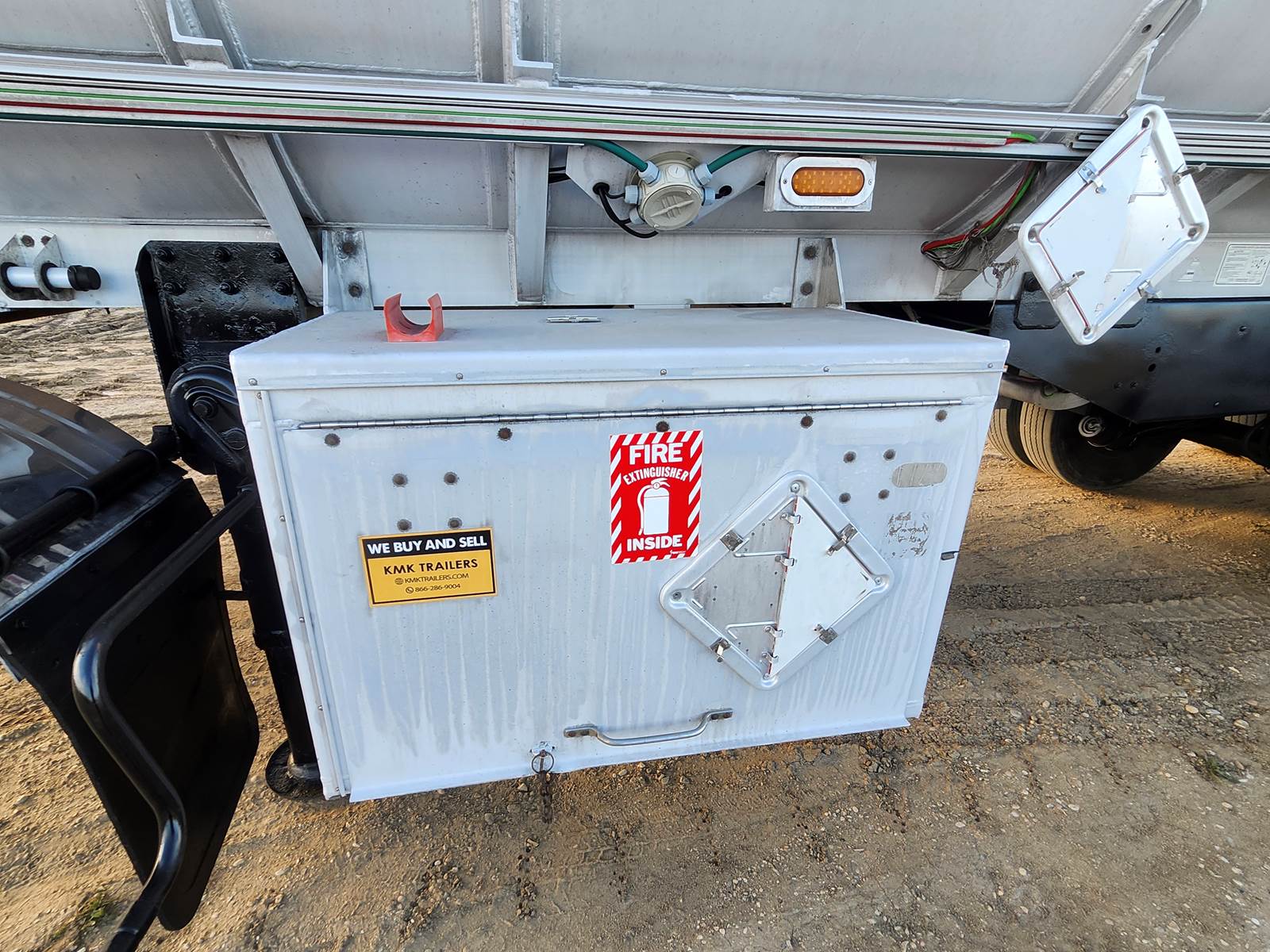

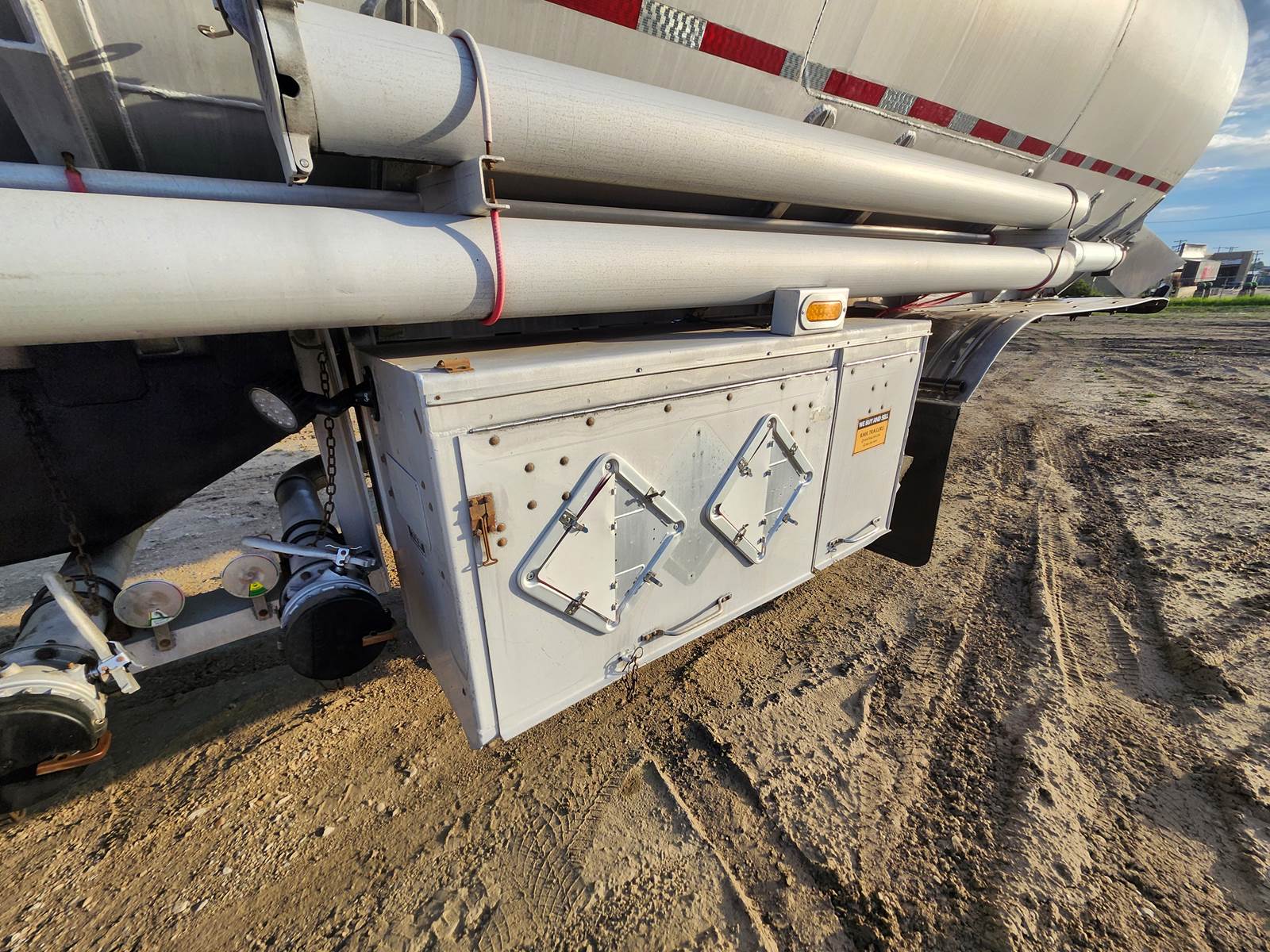

Enclosed control/storage cabinets

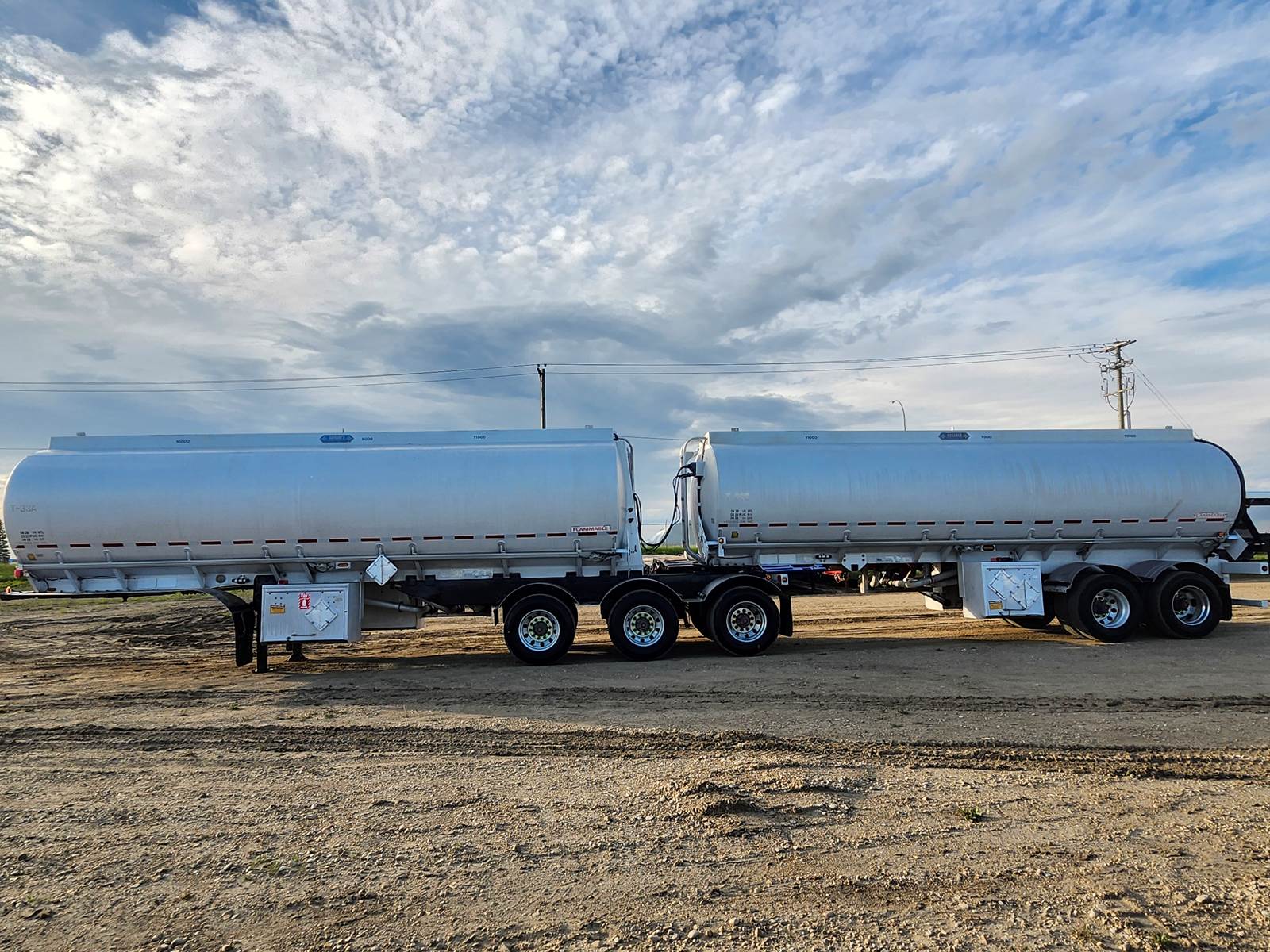

Overall combined trailer length: 62 ft
LEAD TRAILER
Capacity: 33,500 L
Compartments: 3
Manufacturer-rated GVWR: 39,000 kg / approximately 85,980 lb
Tank plate maximum payload: 54,000 lb / approximately 24,494 kg
Length: 37 ft 6 in
Width: 8 ft 6 in
Height: 10 ft 6 in
Front to kingpin: 3 ft 4 in
Kingpin-to-landing-gear clearance: 11 ft
Front to first axle: 25 ft 4 in
Axle spread: 5 ft
Tires: 11R22.5
PUP TRAILER
Capacity: 28,000 L
Compartments: 3
Manufacturer-rated GVWR: 26,000 kg / approximately 57,320 lb
Tank plate maximum payload: 48,500 lb / approximately 21,999 kg
Length: 29 ft 6 in
Width: 8 ft 6 in
Height: 10 ft 6 in
Front to kingpin: 2 ft 2 in
Kingpin-to-landing-gear clearance: 9 ft 6 in
Front to first axle: 20 ft 6 in
Axle spread: 4 ft 2 in
Tires: 11R22.5
Fresh tank inspections and fresh CVIPs included with the sale.
Contact us for pricing, additional information, or to arrange a viewing.
